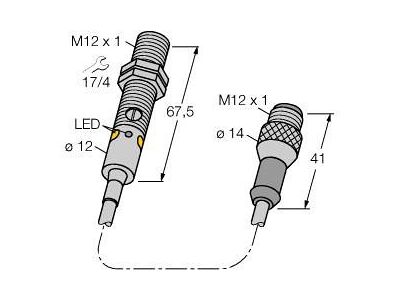

M12PFF75 Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

M12PFF75

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppression, Operating voltage 10…30 VDC, Max. range 75 mm, Cable length 2 m, Cable, PVC, 2 m, 4-wire, Protection classes IP67 / IP68, Metal housing, LED all-round visible, Indication of insufficient excess gain, Operating voltage: 10…30 VDC, PNP switching output, complementary contact

  • SKU
    0662488782283
  • Manufacturer code
    3078228
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Change-over contact (NO/NC)
  • Length of sensor
    67.5 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 60 °C
  • Response time
    0.5 s
  • Switching frequency
    1000 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Rated switching distance
    75 mm
  • Max. switching distance
    75 mm
  • Diameter sensor
    12 mm
  • Adjustment range
    0 - 75 mm
  • Housing material
    Metal
  • Type of switching output
    PNP
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-32477-5f3a5a0130d0c14ff349c7b1393d89c7.pdf (PDF, 328.49 kB)
