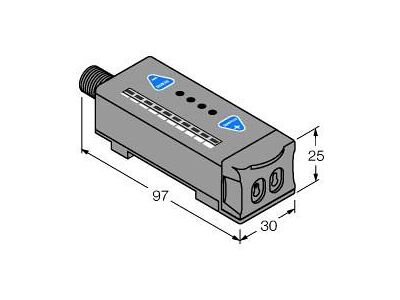

QS30LDLQ-72690 Photoelectric Sensor, Diffuse Mode Sensor

QS30LDLQ-72690

Photoelectric Sensor, Diffuse Mode Sensor, Operating voltage 10…30 VDC, Max. range 800 mm, Male connector, M12 × 1, 5-pin, Customized pin assignment, Protection class IP67, LED all-round visible, Teach button, 8-segment bargraph, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation

  • SKU
    0662488726904
  • Manufacturer code
    3072690
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    22 mm
  • Height of sensor
    57 mm
  • Length of sensor
    35 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -10 - 50 °C
  • Response time
    0.5 s
  • Switching frequency
    1000 Hz
  • Laser protection class
    Class 2
  • Wavelength of the sensor
    658 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Max. switching distance
    800 mm
  • Diameter sensor
    30 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
