Name: TipTeh d.o.o.
Address: Ulica Ivana Roba 23, Ljubljana, 1000, SI
Telephone: +38612005150
Price range: €€

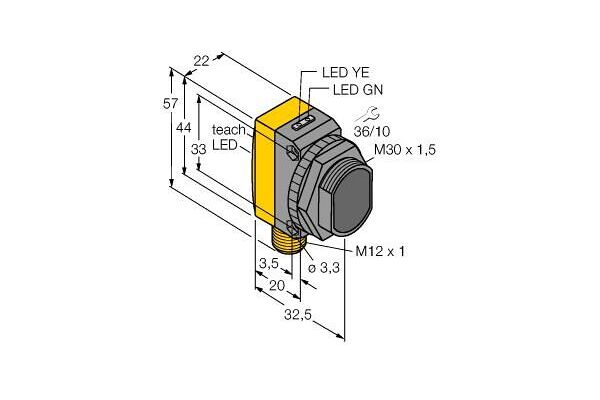

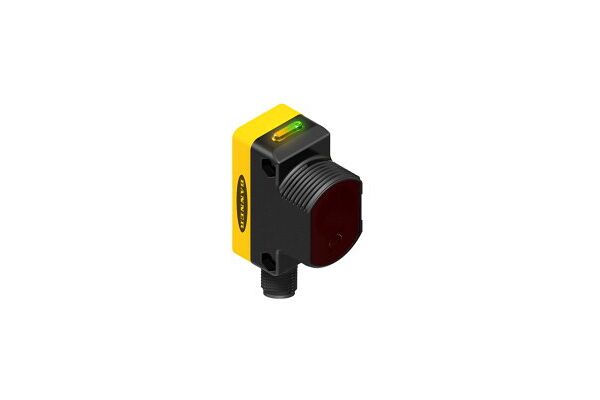

Photoelectric Sensor, Diffuse Mode Sensor, Operating voltage 10…30 VDC, Max. range 400 mm, Male M12 × 1, 5-pin, Protection class IP67, LED, all-round visible, Teach button, No remote teach-in, 8-segment bargraph, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation

SKU

0662488710668
Manufacturer code

3071066
Type of electric connection

Connector M12
Type of switching output

PNP/NPN
Type of switch function

Normally open contact (NO)
Construction type housing

Cuboid
Width sensor

22 mm
Height of sensor

57 mm
Length of sensor

35 mm
Sensing mode

Light switching
Dark switching
Material of optical surface

Plastic
Ambient temperature

-10 - 50 °C
Response time

0.5 s
Switching frequency

1000 Hz
Laser protection class

Class 1
Wavelength of the sensor

650 nm
Type of light

Polarity free red light
Suitable for safety functions

false
Degree of protection (IP)

IP67
Material of cable sheath

Polyvinyl chloride (PVC)
Max. switching distance

400 mm
Diameter sensor

30 mm
Housing material

Plastic
Type of switching output

PNP/NPN
Connector gender

male

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
Need our help?

or call us at

An inquiry about QS30LDQ-71066

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Cart

QS30LDQ-71066 Photoelectric Sensor, Diffuse Mode Sensor

This product is unavailable

Need our help?

An inquiry about QS30LDQ-71066

Related products

Cookie?

We use the following cookies:

QS30LDQ-71066 Photoelectric Sensor, Diffuse Mode Sensor

This product is unavailable

Need our help?

An inquiry about QS30LDQ-71066

Related products

QS30LDQ Photoelectric Sensor, Diffuse Mode Sensor

QS30LD Photoelectric Sensor, Diffuse Mode Sensor

QS30LD W/30 Photoelectric Sensor, Diffuse Mode Sensor

QS30LDQPMA Photoelectric Sensor, Diffuse Mode Sensor

QS30LDQP Photoelectric Sensor, Diffuse Mode Sensor

QS30LDLQ Photoelectric Sensor, Diffuse Mode Sensor

QS30EDVQ Photoelectric Sensor, Diffuse Mode Sensor

R55FPQ Photoelectric Sensor, Photoelectric Sensor for Plastic Fibers

R55FQ Photoelectric Sensor, Photoelectric Sensor for Glass Fibers

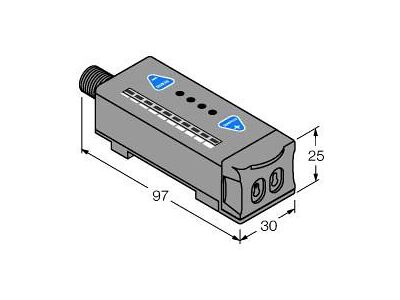

R55FH2OQ Photoelectric Sensor, Photoelectric Sensor for Glass Fibers
