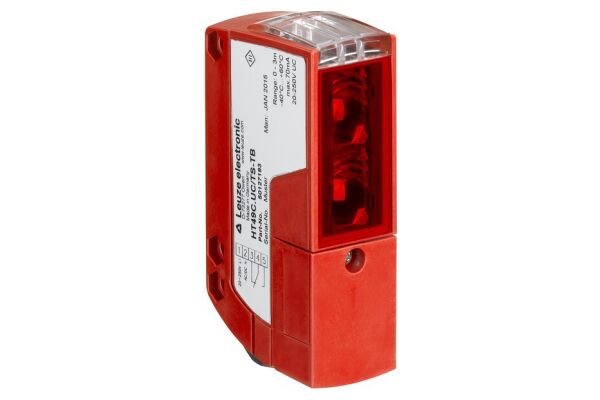

HT49C.UCH/TS-TB Diffuse sensor with background suppression

HT49C.UCH/TS-TB
Diffuse sensor with background suppression and heating feature; suitable for various operating ranges.
  • SKU
    2110-50130470
  • Manufacturer code
    50130470
  • Triangulation
    Background fade-out
  • Pre failure notice
    false
  • With time function
    false
  • Max. output current
    2500 A
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Number of semiconductor outputs with signalling function
    2
  • Number of contact energized outputs with signalling function
    0
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Type of electric connection
    Clamp
  • Type of switching output
    Other
  • Type of switch function
    Other
  • Operation agent-safety class
    Safety class 2
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Width sensor
    31 mm
  • Height of sensor
    104 mm
  • Length of sensor
    55.5 mm
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Plastic
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • Max. output current at protected output
    0 mA
  • Ambient temperature
    -40 - 60 °C
  • Response time
    20 s
  • Switching frequency
    25 Hz
  • Switching voltage of OSSD at state "high"
    0 V
  • Voltage type
    DC
    AC/DC
  • With monitoring function downstream switching devices
    false
  • Laser protection class
    None
  • Wavelength of the sensor
    630 nm
  • Type of light
    Polarity free red light
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Teach-In
  • Rated control supply voltage AC 50 Hz
    20 - 250 V
  • Rated control supply voltage AC 60 Hz
    20 - 250 V
  • Adjustment range
    120 - 3000 mm
  • Supply voltage
    20 ... 250
  • Construction type housing
    Cubic
  • Switching frequency
    25
  • Ambient temperature, operation (°C)
    -40 ... 60
  • Special version
    Heating
  • Operational controls
    Multiturn potentiometer
    Teach button
  • Manufacturer Leuze

Product attachments

DS_HT49C-UCH-TS-TB_eng_50130470 (LINK)
