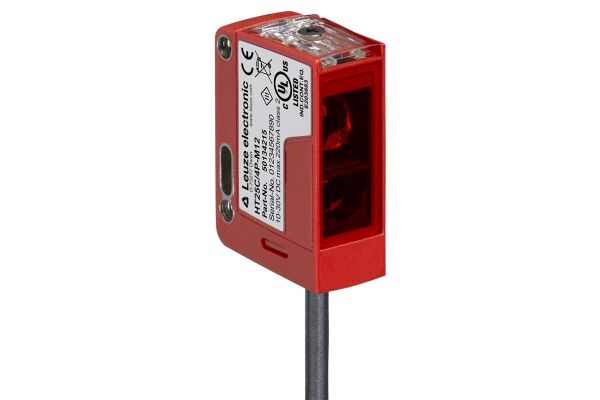

Diffuse sensor with background suppression and a small light spot, suitable for various applications.

SKU

2110-50134240
Manufacturer code

50134240
Triangulation

Background fade-out
Pre failure notice

false
With time function

false
Max. output current

100 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of contact energized outputs with signalling function

0
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of electric connection

Cable
Type of switching output

PNP
Type of switch function

Other
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

15 mm
Height of sensor

42.7 mm
Length of sensor

30 mm
Sensing mode

Light switching
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
Max. output current at protected output

0 mA
Ambient temperature

-40 - 60 °C
Response time

0.33 s
Switching frequency

1500 Hz
Switching voltage of OSSD at state "high"

0 V
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

None
Wavelength of the sensor

640 nm
Type of light

Polarity free red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Setting procedure

Manual adjustment
Material of cable sheath

Polyurethane (PUR)
Operating distance

0 - 500 mm
Adjustment range

50 - 500 mm
Supply voltage

10 ... 30
Construction type housing

Cubic
Switching frequency

1500
Ambient temperature, operation (°C)

-40 ... 60
Special version

Small light spot (S)
Operational controls

Multiturn potentiometer
Operating range limit (m)

0 ... 0.5

Manufacturer Leuze
