Name: TipTeh d.o.o.
Address: Ulica Ivana Roba 23, Ljubljana, 1000, SI
Telephone: +38612005150
Price range: €€

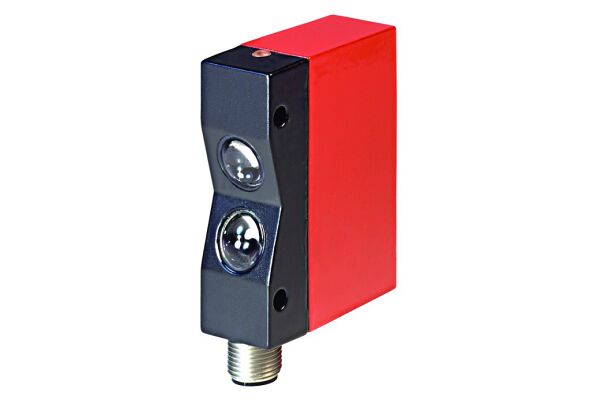

Energetic diffuse sensor with V-optics for precise detection over short distances.

SKU

2110-50025513
Manufacturer code

50025513
Pre failure notice

false
With time function

false
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

1
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of switching output

PNP
Type of switch function

Other
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

20 mm
Height of sensor

60 mm
Length of sensor

44 mm
Sensing mode

Light switching
Material of optical surface

Glass
Housing material

Metal
Metal
Metal
Metal
Max. output current at protected output

0 mA
Ambient temperature

-20 - 60 °C
Response time

0 s
Switching frequency

250 Hz
Switching voltage of OSSD at state "high"

0 V
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Wavelength of the sensor

0 nm
Type of light

Infrared light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP65
Setting procedure

Other
Material of cable sheath

Other
Supply voltage

10 ... 30
Construction type housing

Cubic
Switching frequency

250
Ambient temperature, operation (°C)

-20 ... 60
Special version

V-optics
Most suitable applications

Short-distance detection tasks

Manufacturer Leuze
