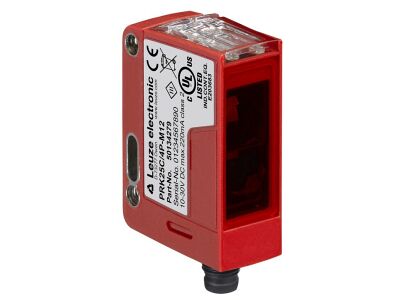

Compact throughbeam photoelectric sensor receiver designed for reliable detection over long distances.

SKU

2110-50127444
Manufacturer code

50127444
Scope of delivery of the one-way system

Receiver
Pre failure notice

false
With time function

false
Max. output current

400 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
Setting procedure

Teach-In
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

1
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of electric connection

Cable
Type of switch function

Other
Operation agent-safety class

Safety class 2
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

31 mm
Height of sensor

104 mm
Length of sensor

55.5 mm
Sensing mode

Light-/dark switching
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
Max. output current at protected output

0 mA
Ambient temperature

-40 - 60 °C
Response time

3.3 s
Switching frequency

150 Hz
Switching voltage of OSSD at state "high"

0 V
Voltage type

DC
AC/DC
With monitoring function downstream switching devices

false
Laser protection class

None
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Rated switching distance

120000 mm
Max. switching distance

150000 mm
Min. reflector distance

0 mm
Transmission range of the safety field

0 m
Rated control supply voltage AC 50 Hz

20 - 250 V
Rated control supply voltage AC 60 Hz

20 - 250 V
Material of cable sheath

Polyvinyl chloride (PVC)
Supplyoltage (V)

20 ... 250
Construction type housing

Cubic
Switching frequency (Hz)

150
Ambient temperature, operation (°C)

-40 ... 60
Operational controls

270° potentiometer
Teach button
Operating range limit (m)

0.5 ... 150
Most suitable applications

Long-distance detection tasks Industrial automation Environmental sensing
