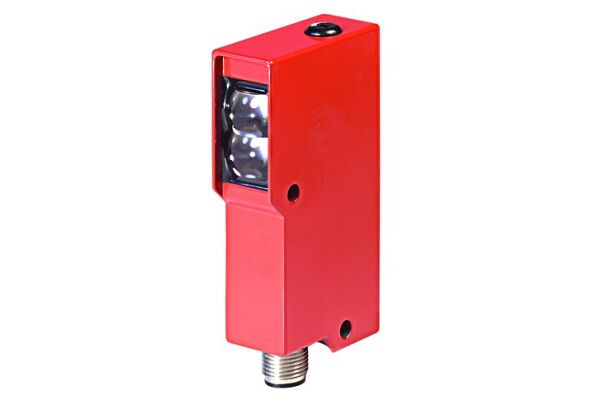

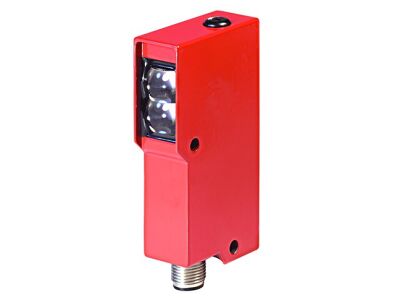

Energetic diffuse sensor with warning output and various features for versatile applications.

SKU

2110-50019281
Manufacturer code

50019281
Pre failure notice

false
With time function

false
Max. output current

0 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of switching output

PNP
Type of switch function

Other
Operation agent-safety class

Safety class 2
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

20 mm
Height of sensor

80 mm
Length of sensor

42.2 mm
Sensing mode

Light-/dark switching
Material of optical surface

Glass
Housing material

Metal
Metal
Metal
Metal
Max. output current at protected output

0 mA
Ambient temperature

-20 - 60 °C
Response time

1 s
Switching frequency

500 Hz
Switching voltage of OSSD at state "high"

0 V
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Wavelength of the sensor

880 nm
Type of light

Infrared light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Setting procedure

Other
Material of cable sheath

Other
Supply voltage

10 ... 30
Construction type housing

Cubic
Switching frequency

500
Ambient temperature, operation (°C)

-20 ... 60
Special version

Warning output
Most suitable applications

Environments requiring reliable detection within a 0 to 0.9 m range Systems needing light/dark reversible switching outputs Industrial settings due to metal housing and IP 67 protection

Manufacturer Leuze
