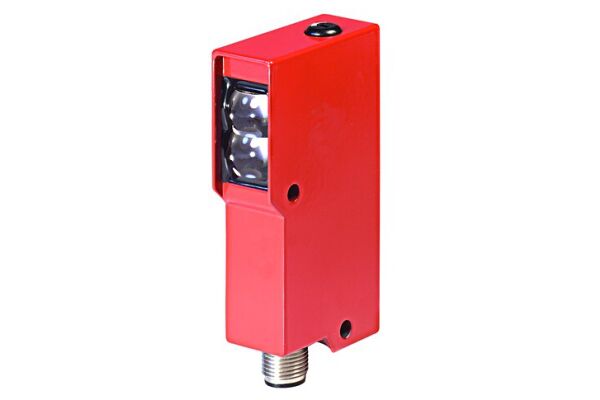

IRK 92/4-400 S Energetic diffuse sensor

IRK 92/4-400 S
Energetic diffuse sensor with warning output and adjustable switching outputs.
  • SKU
    2110-50013058
  • Manufacturer code
    50013058
  • Pre failure notice
    false
  • With time function
    false
  • Max. output current
    0 A
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Number of semiconductor outputs with signalling function
    2
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    PNP
  • Type of switch function
    Other
  • Operation agent-safety class
    Safety class 1
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Width sensor
    20 mm
  • Height of sensor
    80 mm
  • Length of sensor
    42.2 mm
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Glass
  • Housing material
    Metal
    Metal
    Metal
    Metal
  • Max. output current at protected output
    0 mA
  • Ambient temperature
    -20 - 60 °C
  • Response time
    1 s
  • Switching frequency
    500 Hz
  • Switching voltage of OSSD at state "high"
    0 V
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP65
  • Setting procedure
    Other
  • Material of cable sheath
    Other
  • Supply voltage
    10 ... 30
  • Construction type housing
    Cubic
  • Switching frequency
    500
  • Ambient temperature, operation (°C)
    -20 ... 60
  • Special version
    Warning output
  • Manufacturer Leuze

Product attachments

DSw_92_en_c01e (LINK)
