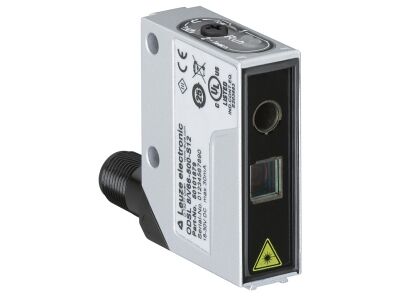

High precision sensors for distance measurement using a red laser light source. Features configurable outputs and multiple inputs, with compatibility for IO-Link interfaces.

SKU

2110-50141322
Manufacturer code

50141322
Operational controls

Push button
Type of analogy output

0 mA ... 20 mA / 4 mA ... 20 mA
Type of electric connection

Connector M12
Type of switching output

PNP/NPN
Type of switch function

Anticoincidence
Operation agent-safety class

Safety class 3
Supply voltage

18 - 30 V
Width sensor

21 mm
Height of sensor

50 mm
Length of sensor

50 mm
Setting procedure

Manual adjustment
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Laser protection class

Class 1
Type of light

Laser diode, red light
Relative linearity deflection

1 %
Measuring principle for optical distance measurement

Triangulation
Degree of protection (IP)

IP67
Voltage type

DC
DC
DC
DC
Ambient temperature

-20 - 50 °C
Pre failure notice

false
Material of optical surface

Glass
Housing material

Plastic
Material of cable sheath

Other
With time function

false
Relative measurement accuracy

0 %
Sensing mode

Light-/dark switching
Most suitable applications

Distance measurement against objects with high precision.
Supplyoltage (V)

18 ... 30
Operational controls

PC software
Control buttons
Analog outputs

1
Scanning system

Against object
Measuring range

50 ... 450
Interface

IO-Link
Special version

Activation input
Teach input
Deactivation input
