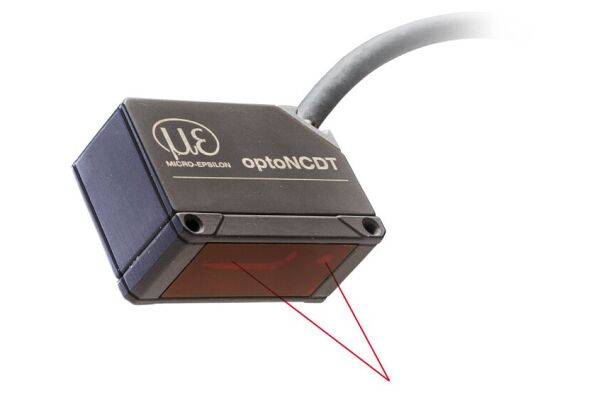

ILD1320-10 Laseroptical displacement sensor

ILD1320-10
optoNCDT 1320 is a laser triangulation sensor designed for non-contact distance, displacement, and position measurement.
  • SKU
    7965-4120209
  • Manufacturer code
    4120209
  • Measuring range
    10 mm
  • Type of electric connection
    integrated cable 3 m, open ends
  • Measuring rate (adjustable)
    0,25 kHz / 0,5 kHz / 1 kHz / 2 kHz / 4 kHz
  • Linearity
    < ± 10 µm
  • Repeatability
    1 µm
  • Protection class
    IP67
  • Dimensions
    46x30x20
  • Supply voltage
    11 … 30 VDC
  • Signal output
    RS422
  • Setting procedure
    PC software
  • Analog output
    4 mA ... 20 mA
  • Digital interface
    RS422

Product attachments

file-1163-7db8c873a15e360561ad64b802f41c1f.pdf (PDF, 1.03 MB)
