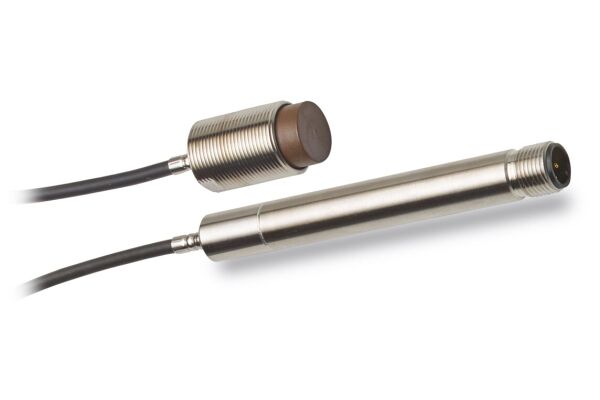

The eddyNCDT 3005 is used for non-contact distance, proximity, and position measurement in machine and process monitoring. It is particularly resistant to pressure, oil, dirt, and temperature.

SKU

7965-4314023
Manufacturer code

4314023
Measuring range

6 mm
Type of electric connection

Sensor: integrated cable, lenght 1 m, Controller: 5-pole M12 connector
Protection class

IP67
Supply voltage

12 ... 32 VDC
Target material

Aluminium (non-ferromagnetic targets)
Frequency response (-3dB)

5 kHz
Temperature compensation up to

Sensor: 10°C ... 125°C, Controller: 10°C ... 60°C
