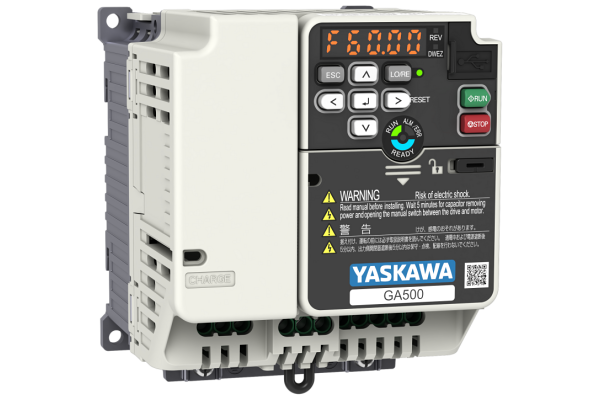

CIPR-GA50CB012EBAA-BAAASA Inverter GA500 200V Single Phase

CIPR-GA50CB012EBAA-BAAASA
Inverter GA500 200V Single Phase, ND 12.2A 3kW HD 11A 2.2kW, with integrated EMC C1-Filter
  • SKU
    7843-10103584
  • Manufacturer code
    10103584
  • Rated voltage
    1-phase 200~240 V, -15 to +10 %
  • Control method
    Sensorless V/f
    Vector control
    EZ Vector
  • Communication
    CANopen
    CC-Link
    DeviceNet
    EtherCAT
    Ethernet/IP
    MECHATROLINK-III
    Modbus/TCP
    POWERLINK
    PROFIBUS-DP
    ProfiNet
  • InputPowerSupply
    200 V
  • InputPowerPhases
    1-phase
  • RatedOutputCurrentHD
    11 A
  • RatedOutputCurrentND
    12.2 A
  • MaxApplMotorPowerHD
    2.2 kW
  • MaxApplMotorPowerND
    3 kW
  • EmcFilter
    yes
  • StandardsCompliance
    cUL
    CE
    RoHS
    UL
    UKCA
  • Humidity
    0.95
  • Height
    128 mm
  • Width
    140 mm
  • Depth
    203 mm
  • Enclosure
    IP20
  • EnvironmentalSpec
    Standard
  • CoolingMethod
    Air cooling
  • MotorThermalProtection
    Standard
  • MaxOutputFrequency
    590 Hz
  • COMMENT
    publish
