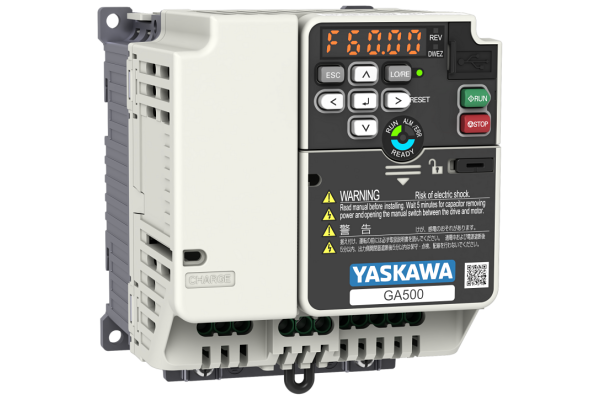

CIPR-GA50C4012EBAA-BAAASA Inverter GA500 400V

CIPR-GA50C4012EBAA-BAAASA
Inverter GA500 400V, ND 11.9A 5.5kW, HD 9.2A 4kW, with integrated EMC C2-Filter
  • SKU
    7843-10103572
  • Manufacturer code
    10103572
  • Rated voltage
    3-phase 380 to 480 VAC, -15 to +10 %
  • Control method
    Sensorless V/f
    Vector control
    EZ Vector
  • Communication
    CANopen
    CC-Link
    DeviceNet
    EtherCAT
    Ethernet/IP
    MECHATROLINK-III
    Modbus/TCP
    POWERLINK
    PROFIBUS-DP
    ProfiNet
  • InputPowerSupply
    400 V
  • InputPowerPhases
    3-phase
  • RatedOutputCurrentHD
    9.2 A
  • RatedOutputCurrentND
    11.9 A
  • MaxApplMotorPowerHD
    4 kW
  • MaxApplMotorPowerND
    5.5 kW
  • EmcFilter
    yes
  • StandardsCompliance
    cUL
    CE
    RoHS
    UL
    UKCA
  • Humidity
    0.95
  • Height
    128 mm
  • Width
    140 mm
  • Depth
    193 mm
  • Enclosure
    IP20
  • EnvironmentalSpec
    Standard
  • CoolingMethod
    Air cooling
  • MotorThermalProtection
    Standard
  • MaxOutputFrequency
    590 Hz
  • COMMENT
    publish
