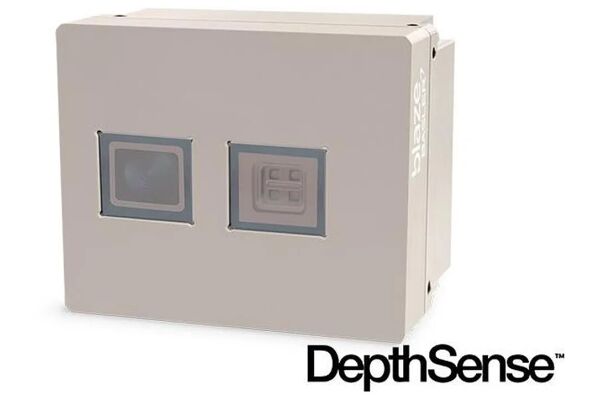

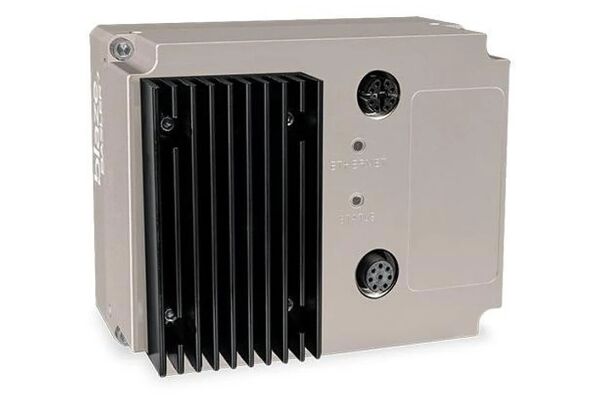

The Basler blaze Time-of-Flight (ToF) camera with the Sony DepthSense™ IMX556PLR sensor offers high-resolution 3D images with near millimeter precision at a very attractive price. Easy commissioning and integration of the Basler ToF Camera is ensured by the pylon software with the complementary Supplementary Package. https://www2.baslerweb.com/en/downloads/software-downloads/#type=baslerblazesoftware;language=all;version=all
SKU
8500-108711
Manufacturer code
108711
Resolution (MP)
VGA
Resolution (HxW px)
640 px × 480 px
Interface
GigE
Frame rate (fps)
30
Mono/Color
Mono
Sensor Vendor
Sony
Sensor Model
DepthSense™ IMX556
Lens Mount
lens integrated
max. Working Range (metres)
10.0000
min. Working Range (metres)
0.3000
Field of View (degree °)
67° x 51°
Measuring Method
Time-of-Flight Camera
Standards
GenApi,GenICam,GenTL,GigE Vision
Operating Temperature - operating_temperature_min_max
