SRB-E-201ST Machine safety relay module
Manufacturer: Schmersal Code: 103008067 SKU: 4030661478456
Monitoring two-hand control panels to EN ISO 13851
2 safety contacts, STOP 0
2 safety contacts, STOP 0
- SKU4250116202478
- Manufacturer code101183408
- Type of application, Terminal designationIEC/EN 60947-1
- Current, Switching capacity, Relay, (Auxiliary contacts), maximum2 A
- Current, Switching capacity, Safe relay outputs, maximum8 A
- Current, Switching capacity, Safe relay outputs, minimum10 mA
- Current, Utilisation category AC-15, Safe relay outputs6 A
- Current, Utilisation category DC-13, Safe relay outputs6 A
- Type of Execution, Degree of pollution IEC/EN 60664-12
- Type of Execution, IP Protection class, ClearanceIP54
- Type of Execution, IP Protection class, GeneralIP40
- Type of Execution, IP Protection class, clips or terminalsIP20
- Type of Execution, Mechanical life, minimum,10000000 Operations
- Type of execution, mountingSnaps onto standard DIN rail to EN 60715
- Type of Execution, Overvoltage category IEC/EN 60664-1III
- Depth, General121 mm
- Height, General100 mm
- Width, General22.5 mm
- Electrical data, Cable section, maximum2.5 mm²
- Electrical data, Cable section, minimum0.25 mm²
- Electrical data, Conduction resistance, maximum40 Ω
- Electrical data, Contact resistance, maximum0.1 Ω
- Material, contacts, electricalAgSn0. self-cleaning, positive drive
- Housing materialGlass-fibre reinforced thermoplastic, ventilated
- Standard, climatic stressEN 60068-2-78
- Standard, EMC ratingEMC-Directive
- Standard, standardsEN IEC 60947-5-1
EN ISO 13849-1
EN IEC 61508
EN IEC 60204-1
EN IEC 60947-5-3
EN IEC 62061
EN IEC 60947-5-5
EN IEC 60947-1 - Note, contact resistancein new state
- Note, GeneralInductive loads (e.g. contactors, relays, etc.) are to be su
- Note, applicationsTwo-hand control panels
- Note, Wiring diagramRelay outputs: Suitable for 2 channel control, for increase
The wiring diagram is shown for the de-energised condition.
The control recognises cross-short, cable break and earth le
(H2) = Feedback circuit
Simultaneity monitoring 0.5 seconds
Button A and B: 0 NC contact / 1 NO contact (note: the NC co - Number, LED's3
- Number, NO contacts2
- Number, Safety contacts2
- Web, Delivery notice (date until)2024-12-31
- PIM maintenance statusDischarge "Online catalog"
- PNV, standard, certificatescULus
TILVA - Power, electrical consumption1.6 W
- Type of electric connectionScrew terminals M20 x 1.5
rigid or flexible - Review, Resistance to vibrations to EN 60068-2-610...55 Hz, Amplitude 0.35 mm, ± 15 %
- Review, restistance to shock30 g / 11 ms
- Safety parameters, Category, Stop 04
- Safety parameters, Common Cause Failure (CCF), Relay outputs, minimum65
- Safety parameters Diagnostic Coverage (DC) Level, Stop 0≥ 99 %
- Safety parameters, Mission time, Relay outputs20 Year(s)
- Safety parameterEN IEC 61508
EN IEC 60947-5-1
EN ISO 13851 - Safety parameters, Performance Level, stop 0e
- Safety values, PFH value Stop 00.00000002 /h
- Safety parameters, Safety Integrity Level (SIL), stop 03
- Safety parameters, Stop-Category0
- SAP, basic quantity unitPiece
- SAP, EAN (European Article Number)4250116202478
- SAP, product groupInitial
- SAP, gross weight220.000 g
- SAP, net weight220.000 g
- Indication, Operating state, LEDPosition relay K2
Position relay K1 - Temperature, Ambient temperature[generated product variant]-25 ... +60 °C
- Temperature, ambient temperature, maximum60 °C
- Temperature, ambient temperature, minimum-25 °C
- Temperature, storage and transport temperature,[generated product variant]-40 ... +85 °C
- Temperature, storage and transport temperature, maximum85 °C
- Temperature, storage and transport temperature, minimum-40 °C
- Time, Drop-out delay in case of emergency stop, typically20 ms
- Time, Drop-out delay in case of power failure, typically80 ms
- Time, Frequency range50 Hz
60 Hz - Time, Pull-in delay at automatic start, maximum, typically100 ms
- Time, Pull-in delay at RESET, typically20 ms
- Tolerance, operating voltage, AC, maximum10 %
- Tolerance, operating voltage, AC, minimum-15 %
- Tolerance, operating voltage, DC, maximum20 %
- Tolerance, operating voltage, DC, minimum-15 %
- Tightening torque, torque, clips0.6 Nm
- Voltage, Rated control voltage at AC 50 Hz, maximum26.4 VAC
- Voltage, Rated control voltage at AC 50 Hz, minimum20.4 VAC
- Voltage, Rated control voltage at AC 60 Hz, maximum26.4 VAC
- Voltage, Rated control voltage at AC 60 Hz, minimum20.4 VAC
- Voltage, Rated control voltage at DC, maximum28.8 VDC
- Voltage, Rated control voltage at DC, minimum20.4 VDC
- Voltage, Rated impulse withstand voltage4 kV
- Voltage, rated operating voltage24 VAC -15% / +10%
24 VDC -15% / +20%, residual ripple max. 10 % - Voltage, rated operating voltage24 VAC
- Voltage, rated operating voltage24 VDC
- Voltage, Switching capacity, Relay (auxiliary contacts), maximum24 VDC
- Voltage, Switching capacity, Safe relay outputs, maximum250 VAC
- Voltage, Switching capacity, Safe relay outputs, minimum10 VDC
- Voltage, typeDC
AC - Voltage, Utilisation category AC-15, Safe relay outputs230 VAC
- Voltage, Utilisation category DC-13, Safe relay outputs24 VDC
- Web TypeProduct range
- Selection (Yes/No), Automatic reset functionYes
- Selection (Yes/No), Short-circuit recognitionYes
- Selection (Yes/No), Earth connection detectionYes
- Selection (Yes/No), Electronic FuseYes
- Selection (Yes/No), Feedback circuitYes
- Selection (Yes/No), Integral System Diagnostics, statusYes
- Selection, (Yes/No), Wire breakage detectionYes
- Manufacturer Schmersal
Product attachments
file-25848-7ed84ad2b54234c93b7a1303c3065ccd.pdf (PDF, 373.91 kB)Related products
SRB-E-402ST Machine safety relay module
Manufacturer: Schmersal Code: 103007221 SKU: 4030661478524
SRB201ZH 24VDC Machine safety relay module for two-hand control
Manufacturer: Schmersal Code: 101163440 SKU: 4250116201587
SRB201ZHX3 24VDC Machine safety relay module for two-hand control
Manufacturer: Schmersal Code: 101182968 SKU: 4250116202485
SRB-E-402ST-CC Machine safety relay module
Manufacturer: Schmersal Code: 103016576 SKU: 4030661510361
MSI-SR-2H21-03 Safety relay
Manufacturer: Leuze Code: 50133017 SKU: 2110-50133017
SRB-E-201ST-CC Machine safety relay module
Manufacturer: Schmersal Code: 103016569 SKU: 4030661511535
SRB-E-302ST Machine safety relay module
Manufacturer: Schmersal Code: 103041495 SKU: 4030661561851

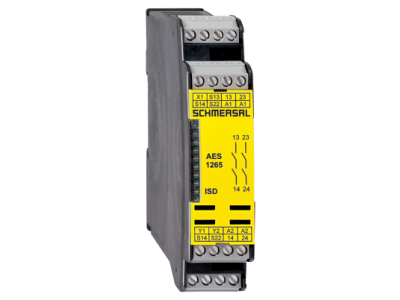

AES 1265 Machine safety relay module
