Two-functions safety monitoring module (double evaluation), 2 x STOP 0
2 x 1 oder 2-channel control
2 x Start button
Auto-start
1 x Monitoring two-hand control panels to ISO 13851
2 safety contacts
2 Safety outputs

SKU

4030661478524
Manufacturer code

103007221
Current, Switching capacity, Relay, (Auxiliary contacts), maximum

1 A
Current, Switching capacity, Safe relay outputs, maximum

6 A
Current, Switching capacity, Safe relay outputs, minimum

10 mA
Current, Utilisation category AC-15, Safe relay outputs

4 A
Current, Utilisation category DC-12, Digital output

0.1 A
Current, Utilisation category DC-13, Safe relay outputs

4 A
Type of Execution, Degree of pollution IEC/EN 60664-1

2
Type of Execution, IP Protection class, Clearance

IP54
Type of Execution, IP Protection class, General

IP40
Type of Execution, IP Protection class, clips or terminals

IP20
Type of Execution, Mechanical life, minimum,

10000000 Operations
Type of execution, mounting

Snaps onto standard DIN rail to EN 60715
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Depth, General

115 mm
Height, General

98 mm
Width, General

22.5 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Conduction resistance, maximum

40 Ω
Electrical data, Contact resistance, maximum

0.1 Ω
Material, contacts, electrical

Ag-Ni, self-cleaning, positive drive
Housing material

Glass-fibre reinforced thermoplastic, ventilated
Standard, EMC rating

EMC-Directive
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN IEC 60204-1
EN IEC 60947-5-3
EN IEC 62061
EN IEC 60947-5-5
EN IEC 60947-1
EN IEC 61508
Note, contact resistance

in new state
Note, applications

Safety sensor
Emergency-Stop button
Pull-wire emergency stop switches
Safety light curtain
Safety light barriers
hinged safety guard
Two-hand control panels
Number, LED's

6
Number, NC contacts

4
Number, NO contacts

2
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
TÜV
CCC
Power, electrical consumption

3.6 W
Type of electric connection

rigid or flexible
Screw connection, plug-in
Review, Resistance to vibrations to EN 60068-2-6

10 ... 55 Hz, Amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Category, EN ISO 13849, Relay outputs

4
Safety parameters, Mission time, Relay outputs

20 Year(s)
Safety parameter

EN IEC 61508
EN ISO 13849-1
EN IEC 62061
Safety parameters, Performance Level, Relay outputs

e
Safety values, PFH value; Relay outputs

0.0000000125 /h
Safety parameters, Safety Integrity Level (SIL), Relais outputs

3
Safety parameters, Stop-Category

0
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661478524
SAP, product group

Initial
SAP, gross weight

190.000 g
SAP, net weight

190.000 g
Indication, Operating state, LED

Internal operating voltage U<sub>i</sub>
Baustein-Status
Fault codes
Temperature, Ambient temperature[generated product variant]

-25 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-40 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-40 °C
Time, Drop-out delay in case of emergency stop, typically

10 ms
Time, Drop-out delay in case of power failure, typically

10 ms
Time, Pull-in delay at automatic start, maximum, typically

150 ms
Time, Pull-in delay at RESET, typically

150 ms
Voltage, rated operating voltage

24 VDC -20%/+20%, residual ripple max. 10%
Voltage, Switching capacity, Relay (auxiliary contacts), maximum

24 VDC
Voltage, Switching capacity, Safe relay outputs, maximum

250 VAC
Voltage, Switching capacity, Safe relay outputs, minimum

10 VDC
Voltage, type

DC
Voltage, Utilisation category AC-15, Safe relay outputs

230 VAC
Voltage, Utilisation category DC-12, Digital output

24 VDC
Voltage, Utilisation category DC-13, Safe relay outputs

24 VDC
Web Type

Product range
Selection (Yes/No), Automatic reset function

Yes
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection, (Yes/No), Wire breakage detection

Yes
Type of application, Terminal designation

IEC/EN 60947-1
Standard, climatic stress

EN 60068-2-78
Tightening torque, torque, clips

0.5 Nm
Tolerance, operating voltage, DC, maximum

20 %
Tolerance, operating voltage, DC, minimum

-20 %
Voltage, Rated control voltage at DC, maximum

28.8 VDC
Voltage, Rated control voltage at DC, minimum

19.2 VDC
Voltage, rated operating voltage

24 VDC
Selection (Yes/No), Earth connection detection

Yes
Selection (Yes/No), Feedback circuit

Yes
Electrical data, Cable section, minimum

0.25 mm²
Current, Rated operating current

150 mA
Number, Auxiliary contacts

1
Selection (Yes/No), Electronic Fuse

Yes
Selection (Yes/No), Reset with edge detection

Yes
Selection (Yes/No), Start input

Yes
Safety parameters, Common Cause Failure (CCF), Relay outputs, minimum

65
Safety parameters, Diagnostic Coverage (DC) Level, Relay outputs

> 94 %
Time, Switching frequency, maximum

0.3 Hz
Safety contacts, STOP 0

2
Current, Residual current, Fail-safe output, maximum

1 mA
Current, Utilisation category DC-12, Fail-safe digital output

2 A
Current, Utilisation category DC-13, Fail-safe digital output

2 A
Number, safety digital outputs, Stop 0

2
Number, Signalling outputs, STOP 0

1
Safety parameters, Category, EN ISO 13849, Digital outputs

4
Safety parameters, Mission time, Digital outputs

20 Year(s)
Safety parameters, Performance Level, Digital outputs

e
Safety parameters, PFD value, Digital outputs

0.0000242
Safety values, PFD value, Relay outputs

0.000053
Safety parameters, PFH value; Digital outputs

0.00000000266 /h
Safety parameters, Safety Integrity Level (SIL), Digital outputs

3
Voltage, voltage drop Ud, maximum

0.5 V
Voltage, Rated impulse withstand voltage, Semi-conductor output

0.8 kV
Voltage, Rated impulse withstand voltage, Relay output

4 kV
Voltage, rated insulation voltage

250 V / 50 V
Voltage, Utilisation category DC-12, Fail-safe digital output

24 VDC
Voltage, Utilisation category DC-13, Fail-safe digital output

24 VDC
Selection (Yes/No), Traceparts

Yes

Manufacturer Schmersal
Need our help?

or call us at

An inquiry about SRB-E-402ST

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

file-27493-a421874c6ef47c0f39a7d56b6297f853.pdf (PDF, 1.09 MB)

Cart

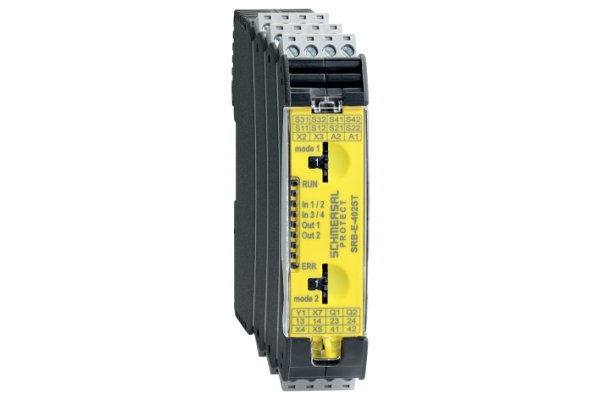

SRB-E-402ST Machine safety relay module
