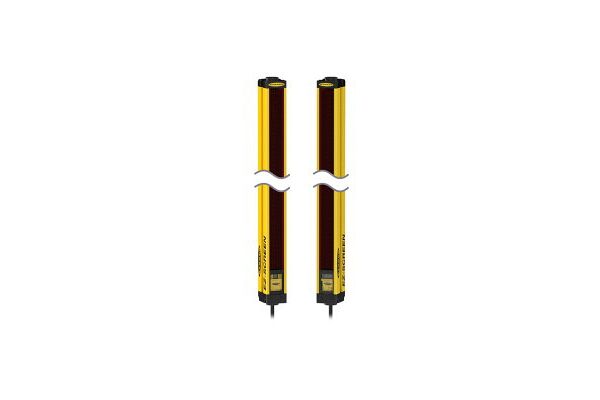

Light Screen for Machine Safety Applications, Emitter/Receiver Pair, Operating voltage 20…28 VDC, Max. range 18000 mm, Emitter with test function, M12 × 1 male connector, 5-pin, Receiver with M12 × 1 male connector, 8-pin, Blanking function, Protection class IP65, Adjustments via DIP switch, Operating voltage 24 VDC ± 15 %, Resolution 30 mm, Scan field 1050 mm, All devices incl. two EZA-MBK-11 mounting brackets; devices with a length of 900 mm or more additionally incl. one EZA-MBK-12, Personnel safety category 4, PL e acc. to EN ISO 13849‐1:2008, Type 4 acc. to IEC 61496‐1,‐2, SIL 3 to IEC 61508
