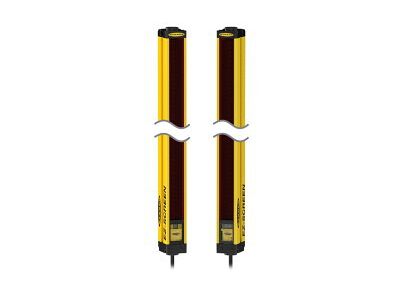

SLSP14-1350P88 Safety Light Curtain, Emitter/Receiver Pair

SLSP14-1350P88

Safety Light Curtain, Emitter/Receiver Pair, Operating voltage 20…28 VDC, Max. range 6000 mm, Emitter with M12 × 1 male connector, 8-pin, Receiver with M12 × 1 male connector, 8-pin, Blanking function, Protection class IP65, Adjustments via DIP switch, Operating voltage 24 VDC ± 15 %, Resolution 14 mm, Scan field 1350 mm, All devices incl. two EZA-MBK-11 mounting brackets; devices with a length of 900 mm or more additionally incl. one EZA-MBK-12

  • SKU
    0662488739560
  • Manufacturer code
    3073956
  • Fade-out possible
    true
  • Type of switching output of the OSSD
    PNP
  • With muting function
    false
  • Resolution of the light curtain
    14 mm
  • Protective field height (mm)
    1350 mm
  • With restart blockage
    true
  • Suitable for safety functions
    true
  • Type of electric connection
    Connector M12
  • Height of sensor
    1420 mm
  • Ambient temperature
    0 - 50 °C
  • Wavelength of the sensor
    950 nm
  • Number of protected semiconductor outputs
    2
  • Max. output current at protected output
    500 mA
  • Width sensor
    36 mm
  • Length of sensor
    45 mm
  • Response time
    43 s
  • Connector gender
    male - male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
