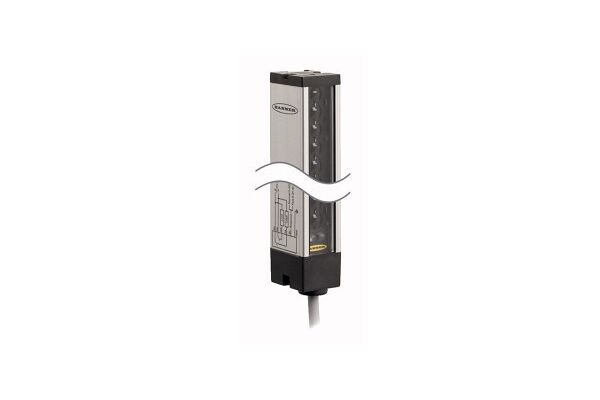

LX3RSRQ Photoelectric Sensor, Switching Light Screen, Receiver

LX3RSRQ

Photoelectric Sensor, Switching Light Screen, Receiver, Operating voltage 10…30 VDC, Max. range 200 mm, Cable length 0.2 m, Cable with male end M12 × 1, 5-pin, 0.15 m, Protection class IP65, Scan field 67 mm, Minimum target size 5.6 mm, Operating voltage: 10 … 30 VDC, Programmable connection for reduced sensing range, 2 slot nuts including M5 screws for wall mounting included in the scope of delivery

  • SKU
    0662488026684
  • Manufacturer code
    3002668
  • Type of electric connection
    Connector M12
  • Ambient temperature
    -20 - 70 °C
  • Type of switching output of the OSSD
    PNP/NPN
  • Response time
    0.8 s

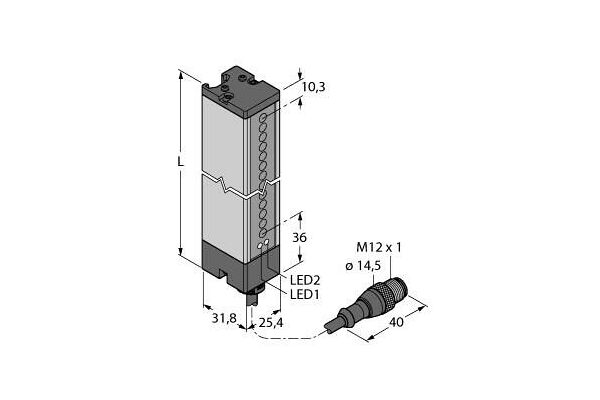

  • Width sensor
    25.4 mm
  • Height of sensor
    113.4 mm
  • Length of sensor
    31.8 mm
  • Resolution of the light curtain
    5.6 mm
  • Height, Protection field
    67 mm
  • Suitable for safety functions
    false
  • Connector gender
    male
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-47023-1f3e7ef33cf75f30680aa5dd228931b0.pdf (PDF, 937.53 kB)
