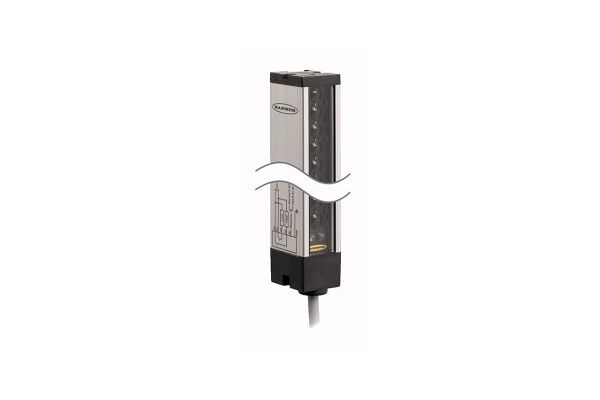

LX12RSR Photoelectric Sensor, Switching Light Screen, Receiver

LX12RSR

Photoelectric Sensor, Switching Light Screen, Receiver, Operating voltage 10…30 VDC, Max. range 200 mm, Cable length 2 m, Cable, 2 m, 5-wire, Protection class IP65, Scan field 295 mm, Minimum target size 5.6 mm, Operating voltage: 10 … 30 VDC, Programmable connection for reduced sensing range, 2 slot nuts including M5 screws for wall mounting included in the scope of delivery

  • SKU
    0662488026899
  • Manufacturer code
    3002689
  • Type of electric connection
    Cable
  • Ambient temperature
    -20 - 70 °C
  • Type of switching output of the OSSD
    PNP/NPN
  • Response time
    3.2 s

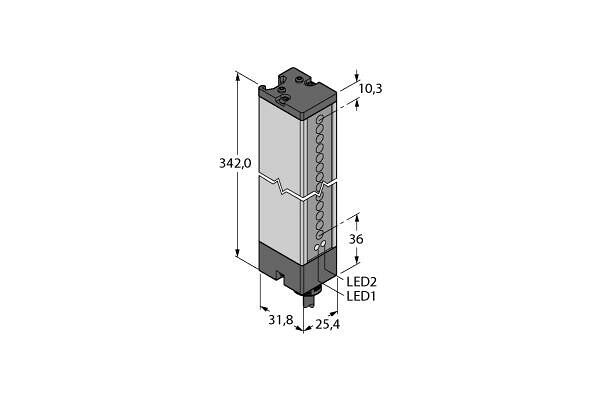

  • Width sensor
    25.4 mm
  • Height of sensor
    342 mm
  • Length of sensor
    31.8 mm
  • Resolution of the light curtain
    5.6 mm
  • Height, Protection field
    295 mm
  • Suitable for safety functions
    false
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-38811-ce977ab17199a93bb6f14e260040ec80.pdf (PDF, 862.08 kB)
