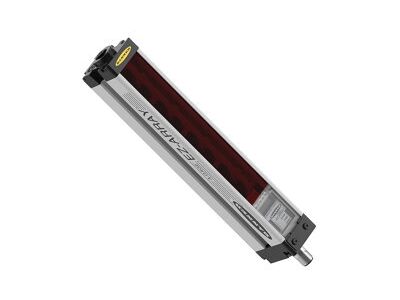

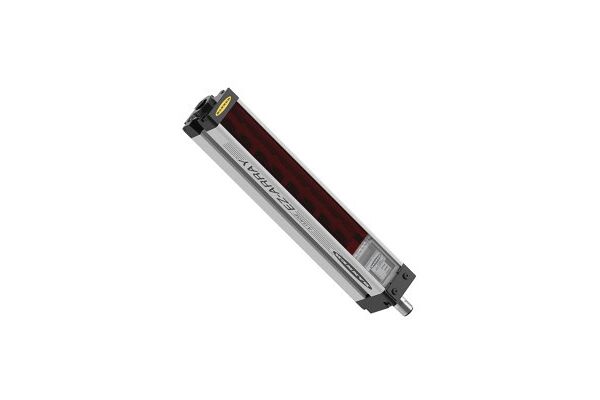

EA5R450XKQ Measuring Light Screen, Receiver

EA5R450XKQ

Measuring Light Screen, Receiver, Operating voltage 18…30 VDC, Max. range 4000 mm, Male M12 × 1, 8-pin, Protection class IP65, Resolution 5 mm, Max. range 4 m, 2 × EZA-MBK-11 brackets included in delivery, Operating voltage 18…30 VDC, IO-Link communication and PNP switching output (standard via IO-Link splitter CSB-M1240M1280 included in scope of delivery) or analog output 0…10 V via splitter CSB-M1250M1280 (to be ordered separately), Extension cable required between emitter and splitter, type DEE2R-8xxD, 2 × PNP switching output (SIO mode), 2 × analog outputs 0…10 V (SIO mode)

  • SKU
    0662488151553
  • Manufacturer code
    3015155
  • Type of electric connection
    Connector M12
  • Ambient temperature
    -40 - 70 °C
  • Type of switching output of the OSSD
    PNP/NPN
  • Response time
    7.1 s
  • Fade-out possible
    true

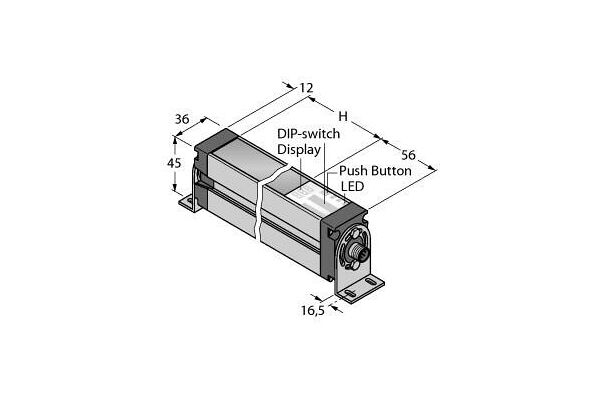

  • Width sensor
    36 mm
  • Height of sensor
    529 mm
  • Length of sensor
    45.2 mm
  • Resolution of the light curtain
    5 mm
  • Height, Protection field
    450 mm
  • Suitable for safety functions
    false
  • Connector gender
    male
  • Switching output
    PNP
  • Type of interface
    IO-link

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-37978-7269afa8013837b1873fadd9e54e4444.pdf (PDF, 968.05 kB)
