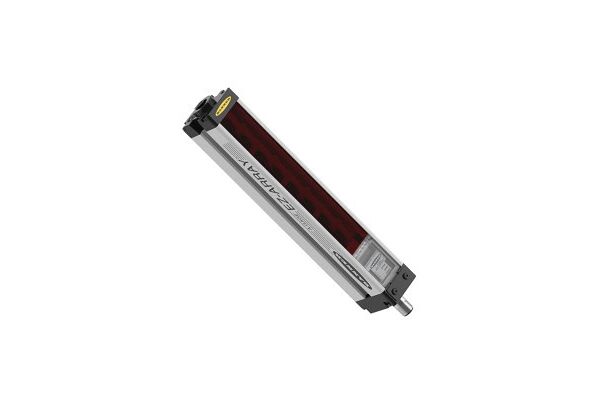

Measuring Light Screen, Receiver, Operating voltage 18…30 VDC, Max. range 4000 mm, Male M12 × 1, 8-pin, Protection class IP65, Resolution 5 mm, Max. range 4 m, 2 × EZA-MBK-11 brackets included in delivery, Operating voltage 18…30 VDC, IO-Link communication and PNP switching output (standard via IO-Link splitter CSB-M1240M1280 included in scope of delivery) or analog output 0…10 V via splitter CSB-M1250M1280 (to be ordered separately), Extension cable required between emitter and splitter, type DEE2R-8xxD, 2 × PNP switching output (SIO mode), 2 × analog outputs 0…10 V (SIO mode)
