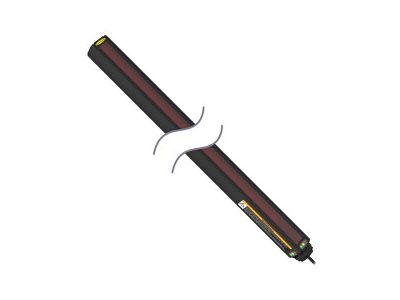

MAHR13A Measuring Light Screen, Receiver

MAHR13A

Measuring Light Screen, Receiver, Operating voltage 11.4…14 VDC, Max. range 1800 mm, Minimum target size 2.5 mm, Scan field 325 mm, Max. sensing range 1.8 m, Operating voltage 11.8…12.2 VDC (from controller), Protection class IP65, Adjustment via software

  • SKU
    0662488626631
  • Manufacturer code
    3062663
  • Type of electric connection
    Connector 7/8 inch
  • Scope of delivery of the one-way system
    Receiver
  • Ambient temperature
    0 - 50 °C
  • Width sensor
    38.1 mm
  • Height of sensor
    399 mm
  • Length of sensor
    38.1 mm
  • Resolution of the light curtain
    2.5 mm
  • Height, Protection field
    325 mm
  • Suitable for safety functions
    false

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-30488-7d9feae7635fc8ab858539a0087646b2.pdf (PDF, 208.36 kB)
