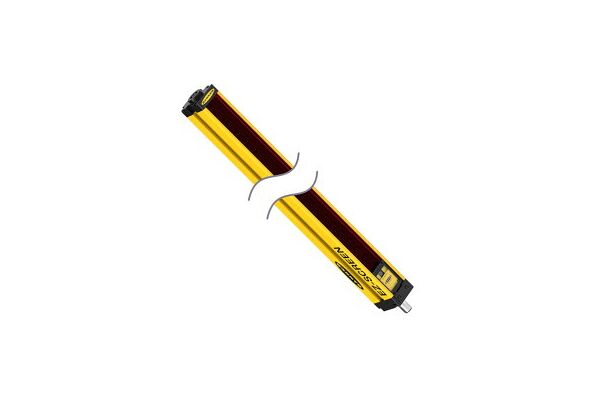

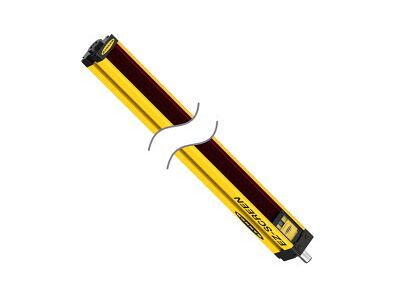

Safety Light Curtain, Receiver, Operating voltage 20…28 VDC, Max. range 18000 mm, M12 × 1 male connector, 8-pin, Blanking function, Protection class IP65, Adjustments via DIP switch, Operating voltage 24 VDC ± 15 %, Resolution 30 mm, Scan field 1350 mm, All devices incl. two EZA-MBK-11 mounting brackets; devices with a length of 900 mm or more additionally incl. one EZA-MBK-12
- SKU0662488739003
- Manufacturer code3073900
- Fade-out possibletrue
- Type of switching output of the OSSDPNP
- With muting functionfalse
- Resolution of the light curtain30 mm
- Protective field height (mm)1350 mm
- With restart blockagetrue
- Suitable for safety functionstrue
- Type of electric connectionConnector M12
- Height of sensor1420 mm
- Ambient temperature0 - 50 °C
- Number of protected semiconductor outputs2
- Max. output current at protected output500 mA

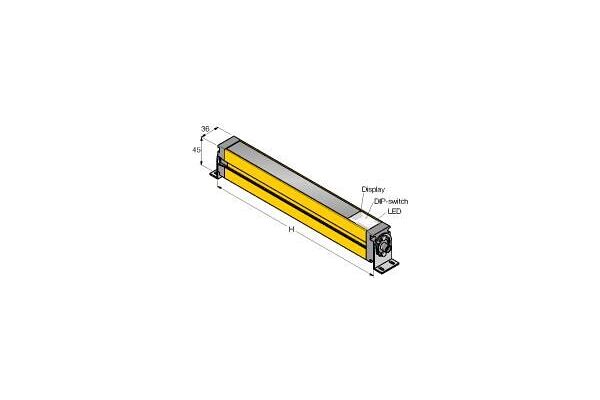

- Width sensor36 mm
- Length of sensor45 mm
- Response time25 s
- Connector gendermale
This product is unavailable
This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
- Manufacturer Turck
