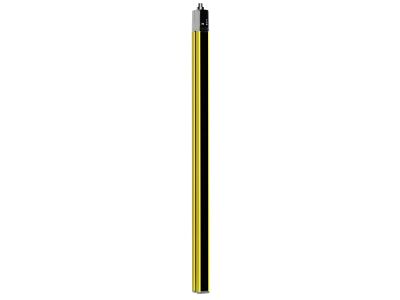

Safety light curtain receiver with Smart Process Gating technology.

SKU

2110-68009412
Manufacturer code

68009412
Fade-out possible

false
Type of switching output of the OSSD

PNP
Operation agent-safety class

Safety class 3
Detection capability for test bodies

40 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Cascadable

false
Scope of delivery of the one-way system

Receiver
With muting function

false
Override possible

false
Resolution of the light curtain

40 mm
Reduced resolution

false
Protective field height (mm)

1200 mm
Type of safety according to IEC 61496-1

4
Voltage type

DC
With beam coding

true
Clock control possible

false
With monitoring function downstream switching devices

false
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP65
Degree of protection (NEMA)

Other
Type of electric connection

Connector M12
Height of sensor

1266 mm
Ambient temperature

-30 - 55 °C
Number of protected semiconductor outputs

2
Number of protected contact energized outputs

2
Max. output current at protected output

380 mA
Switching voltage of OSSD at state "high"

18 V
Width sensor

29 mm
Length of sensor

35.4 mm
Most suitable applications

Industrial safety systems Automation processes requiring high safety levels
Protective field height (mm)

1200
Performance Level (PL)

e
Category

4
ISO Standard

EN ISO 13849
EN ISO 13849-1
Resolution (mm)

40
