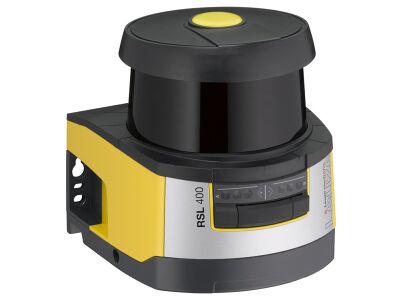

RSL445-M/CU429-300-WPU Safety laser scanner

RSL445-M/CU429-300-WPU
This safety laser scanner is a special version with measurement data output optimized for vehicle navigation. It features a 270° scanning angle and supports up to 100 switchable field pairs with 2 protective functions.
  • SKU
    2110-53800296
  • Manufacturer code
    53800296
  • Scanning interval
    0.09 Hz
  • Number of safety fields
    2
  • Number of protected semiconductor outputs
    4
  • Type of switching output of the OSSD
    PNP
  • Type of electric connection
    Cable with connector
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    140 mm
  • Height of sensor
    149 mm
  • Length of sensor
    140 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 50 °C
  • Response time
    80 s
  • Transmission range of the safety field
    0 m
  • Transmission range of the alert field
    0 m
  • Switching voltage of OSSD at state "high"
    20.8 V
  • Type of safety according to IEC 61496-1
    3
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    905 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Detection capability for test bodies
    1 mm
  • Transmission range of the measuring range
    50 m
  • Most suitable applications
    Optimized for vehicle navigation.
  • Supplyoltage (V)
    24
  • Resolution of protective field (adjustable) (mm)
    30
    40
    50
    60
    70
    150
  • Performance Level (PL)
    d
  • ISO Standard
    EN ISO 13849-1
  • Special version
    Measurement data output optimized for vehicle navigation
  • Connection 1
    M30, 30 -pin
  • Connection 2
    M12, 4 -pin
  • Sheathing material
    PVC
  • Operating range (m)
    0 ... 4.5
  • Cable length (m)
    0.3
  • Manufacturer Leuze

Product attachments

DS_RSL445-M-CU429-300-WPU_eng_53800296 (LINK)
