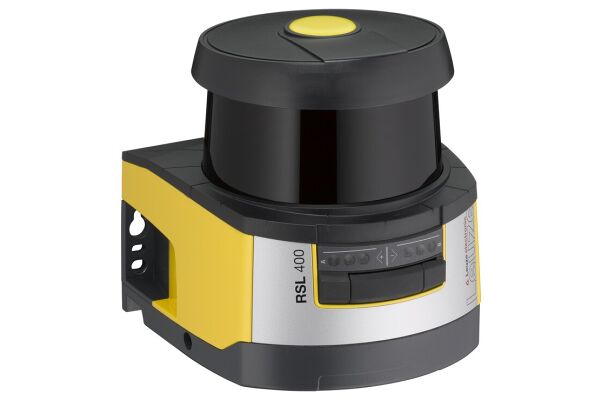

RSL425-S/CU416-5 Safety laser scanner

RSL425-S/CU416-5
This safety laser scanner is a special version with measurement data output optimized for vehicle navigation. It is designed for precise detection and navigation assistance.
  • SKU
    2110-53800267
  • Manufacturer code
    53800267
  • Scanning interval
    0.09 Hz
  • Number of safety fields
    1
  • Number of protected semiconductor outputs
    2
  • Type of switching output of the OSSD
    PNP
  • Type of electric connection
    Cable
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    140 mm
  • Height of sensor
    149 mm
  • Length of sensor
    140 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 50 °C
  • Response time
    80 s
  • Transmission range of the safety field
    0 m
  • Transmission range of the alert field
    0 m
  • Switching voltage of OSSD at state "high"
    20.8 V
  • Type of safety according to IEC 61496-1
    3
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    905 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Detection capability for test bodies
    1 mm
  • Transmission range of the measuring range
    50 m
  • Most suitable applications
    Vehicle navigation
  • Supplyoltage (V)
    24
  • Resolution of protective field (adjustable) (mm)
    30
    40
    50
    60
    70
    150
  • Performance Level (PL)
    d
  • ISO Standard
    EN ISO 13849-1
  • Special version
    Measurement data output optimized for vehicle navigation
  • Connection 1
    16 -wire
  • Connection 2
    M12, 4 -pin
  • Sheathing material
    PVC
  • Operating range (m)
    0 ... 3
  • Cable length (m)
    5
  • Manufacturer Leuze

Product attachments

DS_RSL425-S-CU416-5_eng_53800267 (LINK)
