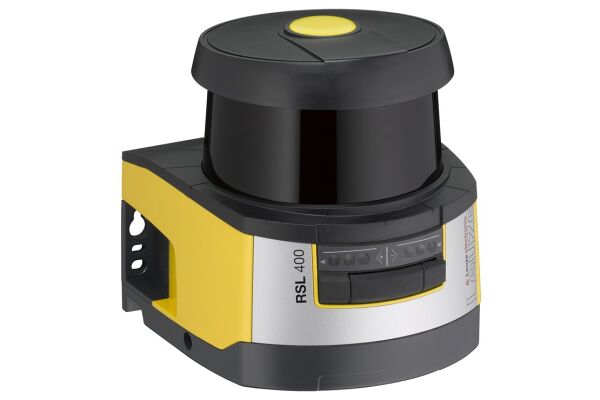

A safety laser scanner designed for industrial safety applications with a scanning angle of 270° and adjustable protective field resolution. It offers reliable safety features and flexible connectivity options.
SKU
2110-53800264
Manufacturer code
53800264
Scanning interval
0.09 Hz
Number of safety fields
1
Number of protected semiconductor outputs
2
Type of switching output of the OSSD
PNP
Type of electric connection
Cable
Operation agent-safety class
Safety class 3
Width sensor
140 mm
Height of sensor
149 mm
Length of sensor
140 mm
With configurable message output
true
Laser protection class
Class 1
Ambient temperature
0 - 50 °C
Response time
80 s
Transmission range of the safety field
0 m
Transmission range of the alert field
0 m
Switching voltage of OSSD at state "high"
20.8 V
Type of safety according to IEC 61496-1
3
Voltage type
DC
DC
DC
DC
With monitoring function downstream switching devices
