Plug-in screw terminals with coding
Input expander module
1 oder 2-channel control
Monitoring of 4 sensors
2 Safety outputs
4 Signalling outputs

SKU

4030661478494
Manufacturer code

103008070
Current, Utilisation category DC-12, Digital output

0.1 A
Type of Execution, Degree of pollution IEC/EN 60664-1

2
Type of Execution, IP Protection class, Clearance

IP54
Type of Execution, IP Protection class, General

IP40
Type of Execution, IP Protection class, clips or terminals

IP20
Type of execution, mounting

Snaps onto standard DIN rail to EN 60715
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Depth, General

115 mm
Height, General

98 mm
Width, General

22.5 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Conduction resistance, maximum

40 Ω
Housing material

Glass-fibre reinforced thermoplastic, ventilated
Standard, EMC rating

EMC-Directive
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN IEC 60204-1
EN IEC 60947-5-3
EN IEC 62061
EN IEC 60947-5-5
EN IEC 60947-1
EN IEC 61508
Note, applications

Safety sensor
Emergency-Stop button
Pull-wire emergency stop switches
Safety light curtain
hinged safety guard
Number, LED's

7
Number, NC contacts

8
Number, NO contacts

4
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
TÜV
CCC
Power, electrical consumption

3 W
Type of electric connection

rigid or flexible
Screw connection, plug-in
Review, Resistance to vibrations to EN 60068-2-6

10 ... 55 Hz, Amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Safety parameter

EN IEC 61508
EN ISO 13849-1
EN IEC 62061
Safety parameters, Stop-Category

0
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661478494
SAP, product group

Initial
SAP, gross weight

150.000 g
SAP, net weight

150.000 g
Indication, Operating state, LED

Internal operating voltage U<sub>i</sub>
Baustein-Status
Fault codes
Temperature, Ambient temperature[generated product variant]

-25 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-40 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-40 °C
Time, Drop-out delay in case of emergency stop, typically

10 ms
Time, Drop-out delay in case of power failure, typically

10 ms
Time, Pull-in delay at automatic start, maximum, typically

150 ms
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated operating voltage

24 VDC -20%/+20%, residual ripple max. 10%
Voltage, type

DC
Voltage, Utilisation category DC-12, Digital output

24 VDC
Web Type

Product range
Selection (Yes/No), Automatic reset function

Yes
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection, (Yes/No), Wire breakage detection

Yes
Type of application, Terminal designation

IEC/EN 60947-1
Standard, climatic stress

EN 60068-2-78
Tightening torque, torque, clips

0.5 Nm
Tolerance, operating voltage, DC, maximum

20 %
Tolerance, operating voltage, DC, minimum

-20 %
Voltage, Rated control voltage at DC, maximum

28.8 VDC
Voltage, Rated control voltage at DC, minimum

19.2 VDC
Voltage, rated operating voltage

24 VDC
Selection (Yes/No), Earth connection detection

Yes
Electrical data, Cable section, minimum

0.25 mm²
Current, Rated operating current

125 mA
Number, Signalling outputs

4
Selection (Yes/No), Electronic Fuse

Yes
Selection (Yes/No), Removable Terminals

Yes
Selection (Yes/No), EPLAN

Yes
Time, Switching frequency, maximum

1 Hz
Current, Residual current, Fail-safe output, maximum

1 mA
Current, Utilisation category DC-12, Fail-safe digital output

2 A
Current, Utilisation category DC-13, Fail-safe digital output

2 A
Number, safety digital outputs, Stop 0

2
Safety parameters, Category, EN ISO 13849, Digital outputs

4
Safety parameters, Mission time, Digital outputs

20 Year(s)
Safety parameters, Performance Level, Digital outputs

e
Safety parameters, PFD value, Digital outputs

0.0000242
Safety parameters, PFH value; Digital outputs

0.00000000266 /h
Safety parameters, Safety Integrity Level (SIL), Digital outputs

3
Voltage, voltage drop Ud, maximum

0.5 V
Voltage, Utilisation category DC-12, Fail-safe digital output

24 VDC
Voltage, Utilisation category DC-13, Fail-safe digital output

24 VDC
Selection (Yes/No), Traceparts

Yes
Selection (Yes/No), Integral System Diagnostics, error code

Yes

Manufacturer Schmersal
Need our help?

or call us at

An inquiry about SRB-E-204PE

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

file-27574-0cf3b849e5fe763b4721cc25f3f119f9.pdf (PDF, 1.14 MB)

Cart

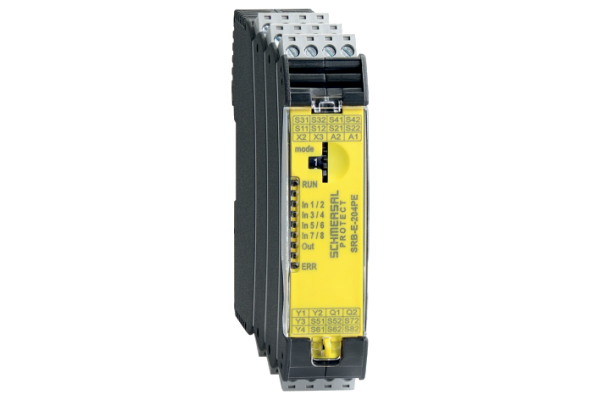

SRB-E-204PE Machine safety relay module
