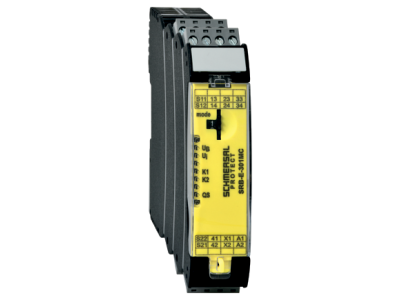

Plug-in spring-cage terminal blocks with coding
2-channel safety door monitoring
2 Safety contacts, 2 Safety Output
2 Signalling outputs
Detects standstill using 1 or 2 impulse sensors
additional standstill signal, e.g. PLC as second input channel
2-channel time monitoring

SKU

4030661550909
Manufacturer code

103039352
Current, Switching capacity, Relay, (Auxiliary contacts), maximum

1 A
Current, Switching capacity, Safe relay outputs, maximum

6 A
Current, Switching capacity, Safe relay outputs, minimum

10 mA
Current, Utilisation category AC-15, Safe relay outputs

4 A
Current, Utilisation category DC-12, Digital output

0.1 A
Current, Utilisation category DC-13, Safe relay outputs

4 A
Type of Execution, Degree of pollution IEC/EN 60664-1

2
Type of Execution, IP Protection class, Clearance

IP54
Type of Execution, IP Protection class, General

IP40
Type of Execution, IP Protection class, clips or terminals

IP20
Type of Execution, Mechanical life, minimum,

10000000 Operations
Type of execution, mounting

Snaps onto standard DIN rail to EN 60715
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Depth, General

115 mm
Height, General

98 mm
Width, General

22.5 mm
Electrical data, Cable section, maximum

1.5 mm²
Electrical data, Conduction resistance, maximum

40 Ω
Electrical data, Contact resistance, maximum

0.1 Ω
Material, contacts, electrical

Ag-Ni, self-cleaning, positive drive
Housing material

Glass-fibre reinforced thermoplastic, ventilated
Standard, EMC rating

EMC-Directive
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN IEC 60204-1
EN IEC 60947-5-3
EN IEC 62061
EN IEC 60947-5-5
EN IEC 60947-1
EN IEC 61508
Note, contact resistance

in new state
Note, applications

safe standstill monitoring
Fail-safe delay timer
guard door monitoring
Number, LED's

6
Number, Safety contacts

2
PIM maintenance status

Discharge "Online catalog"
Power, electrical consumption

3 W
Type of electric connection

rigid or flexible
Cage clamp, plug-in
Review, Resistance to vibrations to EN 60068-2-6

10 ... 55 Hz, Amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Category, EN ISO 13849, Relay outputs

4
Safety parameters, Mission time, Relay outputs

20 Year(s)
Safety parameter

EN IEC 61508
EN ISO 13849-1
EN IEC 62061
Safety parameters, Performance Level, Relay outputs

e
Safety values, PFH value; Relay outputs

0.0000000125 /h
Safety parameters, Safety Integrity Level (SIL), Relais outputs

3
Safety parameters, Stop-Category

0
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661550909
SAP, product group

Initial
SAP, gross weight

190.000 g
SAP, net weight

190.000 g
Indication, Operating state, LED

Internal operating voltage U<sub>i</sub>
Baustein-Status
Fault codes
Temperature, Ambient temperature[generated product variant]

-25 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-40 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-40 °C
Time, Drop-out delay in case of emergency stop, typically

10 ms
Time, Drop-out delay in case of power failure, typically

10 ms
Time, Pull-in delay at automatic start, maximum, typically

150 ms
Time, Pull-in delay at RESET, typically

150 ms
Voltage, rated operating voltage

24 VDC -20%/+20%, residual ripple max. 10%
Voltage, Switching capacity, Relay (auxiliary contacts), maximum

24 VDC
Voltage, Switching capacity, Safe relay outputs, maximum

250 VAC
Voltage, Switching capacity, Safe relay outputs, minimum

10 VDC
Voltage, type

DC
Voltage, Utilisation category AC-15, Safe relay outputs

230 VAC
Voltage, Utilisation category DC-12, Digital output

24 VDC
Voltage, Utilisation category DC-13, Safe relay outputs

24 VDC
Web Type

Product range
Selection (Yes/No), Automatic reset function

Yes
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection, (Yes/No), Wire breakage detection

Yes
Type of application, Terminal designation

IEC 60947-1
Standard, climatic stress

EN 60068-2-78
Tolerance, operating voltage, DC, maximum

20 %
Tolerance, operating voltage, DC, minimum

-20 %
Voltage, Rated control voltage at DC, maximum

28.8 VDC
Voltage, Rated control voltage at DC, minimum

19.2 VDC
Voltage, rated operating voltage

24 VDC
Number, inputs for NC

4
Number, inputs for NO

2
Selection (Yes/No), Earth connection detection

Yes
Selection (Yes/No), Feedback circuit

Yes
Electrical data, Cable section, minimum

0.25 mm²
Current, Rated operating current

150 mA
Number, Auxiliary contacts

1
Number, Signalling outputs

1
Selection (Yes/No), Electronic Fuse

Yes
Selection (Yes/No), Reset with edge detection

Yes
Selection (Yes/No), Start input

Yes
Safety parameters, Common Cause Failure (CCF), Relay outputs, minimum

65
Safety parameters, Diagnostic Coverage (DC) Level, Relay outputs

> 94 %
Time, Pull-in delay at automatic start

Adjustable
Time, Switching frequency, maximum

0.3 Hz
Current, Residual current, Fail-safe output, maximum

1 mA
Current, Utilisation category DC-13, Fail-safe digital output

2 A
Safety parameters, Category, EN ISO 13849, Digital outputs

4
Safety parameters, Mission time, Digital outputs

20 Year(s)
Safety parameters, Performance Level, Digital outputs

e
Safety parameters, PFD value, Digital outputs

0.0000242
Safety values, PFD value, Relay outputs

0.000053
Safety parameters, PFH value; Digital outputs

0.00000000266 /h
Safety parameters, Safety Integrity Level (SIL), Digital outputs

3
Voltage, voltage drop Ud, maximum

0.5 V
Voltage, Rated impulse withstand voltage, Semi-conductor output

0.8 kV
Voltage, Rated impulse withstand voltage, Relay output

4 kV
Voltage, rated insulation voltage

250 V / 50 V
Voltage, Utilisation category DC-13, Fail-safe digital output

24 VDC
Number, fail-safe digital outputs

2

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
