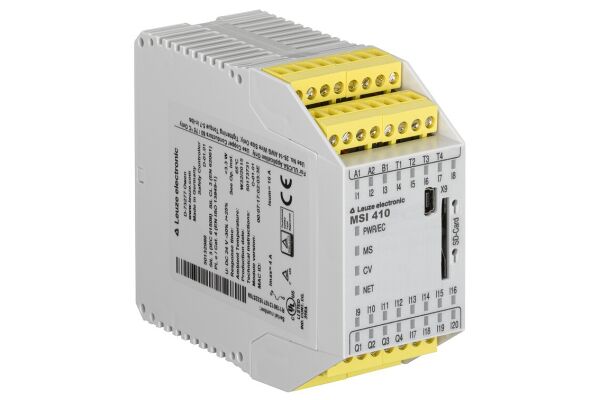

MSI 410-03 Safety control

MSI 410-03
This modularly expandable safety control offers 24 safe I/Os and 40 certified function modules. It features current switching of 4 A per output and can be configured via MSI.designer software with a mini USB interface. The system is expandable with up to 12 I/O modules and supports up to 300 function modules per project. Diagnostic data transfer is possible via external fieldbus gateways, and program memory is available in SD card format.
  • SKU
    2110-50132985
  • Manufacturer code
    50132985
  • Type of electric connection
    Insulation displacement connection
  • Rail mounting possible
    true
  • Wall mounting/direct mounting
    false
  • Front built-in possible
    true
  • Rack-assembly possible
    true
  • Voltage type (supply voltage)
    DC
  • Supply voltage DC
    24 - 24 V
  • Max. number of integrated analogue inputs
    0
  • Max. number of integrated analogue outputs
    0
  • Number of relay outputs
    0
  • Number of channels
    4
  • Parameterizable
    false
  • Integrated configuration function
    false
  • Programmable
    false
  • Expandable
    true
  • With detachable clamps
    false
  • On delay timer
    false
  • Off delay timer
    false
  • With function restart blockage
    false
  • With automatic feeding
    false
  • Function contacter monitoring
    false
  • Function emergency stop
    false
  • Function contactless working protection installation
    false
  • Function affirm pushbutton
    false
  • Function 2-hand switching
    false
  • Function operating mode selection
    false
  • Function access control
    false
  • Number of slots
    31
  • Suitable for safety functions
    true
  • SIL according to IEC 61508
    3
  • Performance level according to EN ISO 13849-1
    Level e
  • Appendant operation agent (Ex ia)
    false
  • Appendant operation agent (Ex ib)
    false
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Width
    45 mm
  • Height
    107 mm
  • Depth
    121 mm
  • Number of outputs (pcs)
    4
  • Number of inputs (pcs)
    20
  • Performance Level (PL)
    Up to and including e
  • Category
    4
  • ISO Standard
    EN ISO 13849
    EN ISO 13849-1
  • Most suitable applications
    Safety control systems requiring SIL 3 and PL e certifications Configurations needing up to 300 function modules Projects requiring modular expansion
  • Manufacturer Leuze

Product attachments

DS_MSI-410-03_eng_50132985 (LINK)
