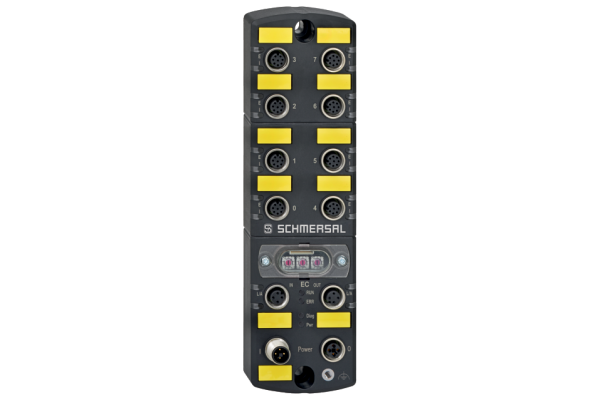

Safety fieldbox for EtherCAT with FSoE
For connection of up to 8 safety switching devices
Integrated dual-port switch
Protection class IP66, IP67

SKU

4030661628707
Manufacturer code

103047531
Type of application, Relative humidity [generated produtct variant]

10 ... 95 %
Type of application, Relative humidity, maximum

95 %
Type of application, Relative humidity, minimum

10 %
Current, Rated operating current

10000 mA
Type of Execution, IP Protection class, General

IP67
IP66
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of Execution, Protection class (Operating resource)

3
Height, General

36.1 mm
Width, General

63.0 mm
Material, housing

Thermoplastic, Polyamide PA 6 GF
Note, Relative humidity

non-condensing
Note, operating voltage, DC

stabilised PELV power supply
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661628707
SAP, product group

Initial
SAP, gross weight

597.740 g
SAP, net weight

597.740 g
Temperature, Ambient temperature[generated product variant]

-25 ... +55 °C
Temperature, ambient temperature, maximum

55 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Tolerance, operating voltage, DC, maximum

10 %
Tolerance, operating voltage, DC, minimum

-15 %
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Voltage, rated operating voltage

24 VDC
Voltage, type

DC
Length, General

222.8 mm
Web Type

Product range
Electrical data, Terminal, Connector, Transmitter, General

M12 Connector socket/connector
Standard, standards

EN ISO 13849-1
EN IEC 60947-5-3
EN IEC 61508
EN IEC 61131-1
EN IEC 61131-2
PNV, standard, certificates

cULus
TÜV
UKCA
ETG
Review, Resistance to vibrations to EN 60068-2-6

10 … 150 Hz, amplitude 0.35 mm / 5 g
Review, restistance to shock

30 g / 11 ms
Safety parameter

EN IEC 61508
EN ISO 13849-1
Current, Consumption

200 mA
Current, consumption at 24V, Diagnostic inputs / Fieldbox-Interface

12 mA
Current, consumption at 24V, safety inputs

6 mA
Current, Residual current, Test pulse output, maximum

0.5 mA
Current, Permissible residual current, Safety digital inout, maximum

1 mA
Current, Residual current, Fail-safe output, maximum

0.5 mA
Current, Rated operating current, Pulse output Y2, at 0V

30 mA
Current, Rated operating current, Pulse output Y1, at 24V

15 mA
Current, Rated operating current, Pulse output Y2, at 24V

10 mA
Current, Rated operating current, external devices

800 mA
Current, Utilisation category DC-12, Fail-safe digital output

0.8 A
Current, Utilisation category DC-13, Fail-safe digital output

0.8 A
Type of Execution, Communication, Protocol, Fieldbus

EtherCAT / FSoE
Type of Execution, Communication, Protocol, Fieldbus specification

V1.0.10
Type of Execution, Communication, Protocol, Safety Flieldbus Specification

V1.2.0
Type of Execution, Communication, Protocol, Integrated switch

Dual Port, 100 Mbit/s
Type of Execution, Communication, Protocol, IP adressing

Topology dependent
Type of Execution, Communication, Protocol, Transfer rate

100 Mbit/s Full Duplex
Type of Execution, Communication, Protocol, Transfer rate, Diagnostic inputs / Fieldbox-Interface

19,2 kBaud
Type of Execution, Communication, Protocol, Service interface

WEB-Interface HTTP
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of execution, mounting

Screws
Type of execution, mounting, Screws

2x M6
Type of execution, mounting, screws, viewing window

2x TX10 (Torx)
Type of execution, switching output, fail-safe output, electric

short-circuit proof, p-type
Type of execution, switching output, test pulse output, electric

short-circuit proof, p-type
Height, permissible installation height above sea level, maximum

2000 m
Length, Cable, Device Port, maximum

30 m
Electrical data, Classification, ZVEI CB24I: Sink, Test pulse outputs

C1
Electrical data, Classification, ZVEI CB24I: Sink, Safety digital inputs

C1
Electrical data, Classification, ZVEI CB24I: Sink, fail-safe digital outputs

C1
Electrical data, Classification, ZVEI CB24I: Source, Test pulse outputs

C1
Electrical data, Classification, ZVEI CB24I: Source, Safety digital inputs

C1
C2
C3
Electrical data, Classification, ZVEI CB24I: Source, fail-safe digital outputs

C1
Electrical data, Designation device connection, Diagnostic inputs / Fieldbox-Interface

DI
Electrical data, Designation device connection, general

X0 ... X7
Electrical data, Designation device connection, Test pulse outputs

Y1 and Y2
Electrical data, Designation device connection, Power supply

A1 and A2
Electrical data, Designation device connection, Safety inputs

X1 and X2
Electrical data, Designation device connection, Safety outputs

DO
Electrical data, Internal fuse rating, External devices

1.5 A (Integrated automatic resettable fuse)
Electrical data, Inputs, Switching thresholds, Diagnostic inputs / Fieldbox-Interface

−3 V … 5 V (Low)
15 V … 30 V (High)
Electrical data, inputs, switching thresholds for fail-safe inputs

13 V ... 30 V (High)
−3 V … 5 V (Low)
Electrical data, Terminal Connector, Field bus

M12, 4-pole, D-coded
Electrical data, Terminal connector, Input/Output

X0 - X7: M12, 8-pole, A-coded
Electrical data, Terminal Connector, Power I/O

M12 POWER, 4-pole, T-coded
Material, identification label

Plastic, Polyamide PA
Material, Encapsulation (electronic)

Polyurethane 2K PU
Material, Inspection window

Polyamide PACM 12
Note, Electrical data, Fuse rating)

External fuse protection required ≤ 10A slow blow when used
Notice, Safety parameters, 2-channel safety inputs

The SFB fulfils the requirements as PDDB (proximity switch w
Note, applications

Safe field box with decentralised I/Os
Note, Utilisation category DC-13, Fail-safe digital output

Inductive load, maximum 400 mH
Safety parameters, Category, EN ISO 13849, 1 channel Inputs

2
Safety parameters, Category, EN ISO 13849, Outputs with 1x cable

3
Safety parameters, Category, EN ISO 13849, 2 channel Inputs

4
Safety parameters, Category, EN ISO 13849, Outputs with 2x cable

4
Safety parameters Diagnostic Coverage (DC) Level, 1 channel Inputs

90 %
Sicherheitskennwerte, Diagnostic Coverage (DC) Level, Ausgänge mit 1x Leitung

90 %
Safety parameters Diagnostic Coverage (DC) Level, 2 channel Inputs

99 %
Sicherheitskennwerte, Diagnostic Coverage (DC) Level, Ausgänge mit 2x Leitung

99 %
Safety parameters, Mission time, 1 channel Inputs

20 Year(s)
Safety parameters, Mission time, Outputs with 1x cable

20 Year(s)
Safety parameters, Mission time, 2 channel Inputs

20 Year(s)
Safety parameters, Mission time, Outputs with 2x cable

20 Year(s)
Safety parameters, Performance Level, 1-channel inputs

d
Safety parameters, Performance Level, outputs with 1x cable

d
Safety parameters, Performance Level, 2-channel inputs

e
Safety parameters, Performance Level, outputs with 2x cable

e
Safety parameters, PFDavg-value, 1-channel inputs

0.02
Safety parameters, PFDavg-value, outputs with 1x cable

0.0088
Safety parameters, PFDavg-value, 2-channel inputs

0.000096
Safety parameters, PFDavg-values, outputs with 2x cable

0.00011
Safety parameters, PFH-value, 1-channel inputs

0.00000023 /h
Safety parameters, PFH-value, outputs with 1x cable

0.0000001 /h
Safety parameters, PFH-value, 2-channel inputs

0.0000000011 /h
Safety parameters, PFH-value, outputs with 2x cable

0.0000000012 /h
Safety parameters, Safety Integrity Level (SIL), 1-channel inputs

1
Safety parameters, Safety Integrity Level (SIL), outputs with 1x cable

2
Safety parameters, Safety Integrity Level (SIL), 2-channel inputs

3
Safety parameters, Safety Integrity Level (SIL), outputs with 2x cable

3
Notice, Test interval for error detection

10 s
Sicherheitskennwerte, Reaktionszeit, 1-kanalige Eingänge => Feldbussystem, maximum

30 ms
Sicherheitskennwerte, Reaktionszeit, 2-kanalige Eingänge => Feldbussystem, maximum

30 ms
Sicherheitskennwerte, Reaktionszeit, Feldbussystem => Ausgang mit 1x Leitung, maximum

50 ms
Sicherheitskennwerte, Reaktionszeit, Feldbussystem => Ausgang mit 2x Leitung, maximum

50 ms
Status display, LED 1, Colour

green/red
Status display, LED 1, Information

Error LED device port
Status display, LED 1, Position

E: 0 ... 7
Status display, LED 2, Colour

Yellow
Status display, LED 2, Information

Input LED device port
Status display, LED 2, Position

I: 0 ... 7
Status display, LED 3, Colour

Green
Status display, LED 3, Information

Link / Activity-LED Ethernet Port
Status display, LED 3, Position

L / A: IN + OUT
Status display, LED 5, Colour

Green
Status display, LED 5, Information

EtherCAT RUN LED
Status display, LED 5, Position

"RUN": Module
Status display, LED 6, Colour

Red
Status display, LED 6, Information

EtherCAT error LED
Status display, LED 6, Position

"ERR": Module
Status display, LED 7, Colour

green/red
Status display, LED 7, Information

Fieldbox Diag-LED
Status display, LED 7, Position

"Diag": Module
Status display, LED 8, Colour

Green
Status display, LED 8, Information

Power-LED fieldbox
Status display, LED 8, Position

"Pwr": Module
Time, Device Watchdog Time

12 ms
Time, Debounce filter, Input, Diagnostic inputs / Fieldbox-Interface

10 ms
Time, Switching frequency, Safety digital output, maximum

1 Hz
Time, test pulse duration, safety, test pulse output, maximum

1 ms
Time, test pulse duration, maximum

1 ms
Time, test pulse duration, minimum

0.01 ms
Time, test pulse duration, safety, digital output, maximum

1 ms
Time, test pulse interval, test pulse output, typical

500 ms
Time, test pulse interval, safety digital input, maximum

120000 ms
Time, test pulse interval, safety digital input, minimum

20 ms
Time, test pulse interval, safety digital output, maximum

500 ms
Time, test pulse interval, safety digital output, minimum

15 ms
Time, Time to readiness, maximum

12000 ms
Time, Worst Case Delay Time, Inputs, maximum

30 ms
Time, Worst Case Delay Time, Outputs, maximum

50 ms
Tightening torque, tightening torque, Electrical connection[generated product variant]

0.8 ... 1.5 Nm
Tightening torque, tightening torque, Electrical connection, maximum

1.5 Nm
Torque, tightening torque, electrical connection, minimum

0.8 Nm
Torque, tightening torque, screw, mounting, maximum

3.0 Nm
Torque, tightening torque, cable gland, maximum

0.6 Nm
Voltage, voltage drop Ud, maximum

2 V
Voltage, rated operating voltage, external devices

24 VDC
Voltage, Utilisation category DC-12, Test pulse output

24 VDC
Voltage, Utilisation category DC-12, Fail-safe digital output

24 VDC
Voltage, Utilisation category DC-13, Fail-safe digital output

24 VDC
Selection (Yes/No), CADENAS

Yes
Selection (Yes/No), EPLAN

Yes
Selection (Yes/No), Integral System Diagnostics, general

Yes
Selection (Yes/No), Traceparts

Yes
Web Produktneutheit (Datum bis)

2024-04-30
Time, Device Acknowledgement Time, maximum

25 ms

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
