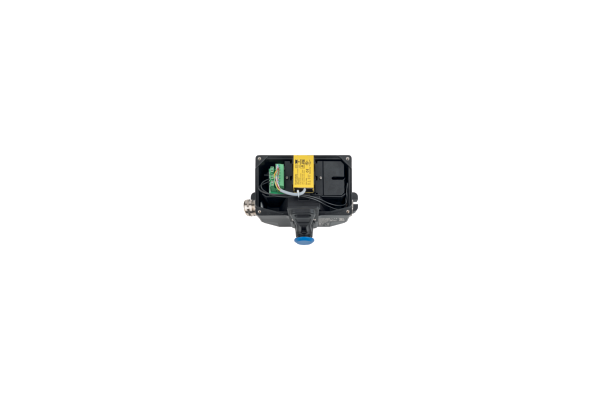

RS655-Z22-DS Pull-wire emergency stop switch

RS655-Z22-DS
Metal enclosure
wire pull and breakage detection
Protection class IP66, IP67
Central connection terminal
Mechanical switching position indication
two-side operation
wire up to 2 x 100 m
  • SKU
    4030661532950
  • Manufacturer code
    153031618
  • Type of application, Actuating direction
    Each time 75° right-hand side and left-hand side rotation
  • Current, Thermal test current
    6 A
  • Current, Utilisation category AC-15
    3 A
  • Current, Utilisation category DC-13
    3 A
  • Type of execution, Actuating element
    Roller lever N300
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Type of Execution, Mechanical life, minimum,
    100000 Operations
  • Switching principle
    Snap action
  • Length, wire, maximum
    100 m
  • Electrical data, Cable section, maximum
    2.5 mm², flexible
  • Electrical data, Cable section, minimum
    0.5 mm², flexible
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver
  • Housing material
    Grey cast iron, painted
  • Material, housing cover
    Grey cast iron, painted
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-5-5
    EN ISO 13850
    EN 620
  • Number, Auxiliary contacts
    2
  • Number, Safety contacts
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
    TÜV
  • Type of electric connection
    Cage clamp
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661532950
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    6200.000 g
  • SAP, net weight
    6200.000 g
  • Temperature, Ambient temperature[generated product variant]
    -40 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -40 °C
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    300 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Selection (Yes/No), Traceparts
    Yes
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    I
  • Type of Execution, Cable entry
    2 x M25 x 1.5
  • Type of Execution, Protection class (Operating resource)
    1
  • Note, applications
    Pull-wire emergency stop switches
  • Current, Consumption, DuplineSafe,
    1 mA
  • Type of Execution, Communication, Protocol, Fieldbus
    DuplineSafe
  • Electrical data, Cable section, Dupline, maximum
    2.5 mm², flexible
    4 mm², rigid
  • Electrical data, Cable section, Dupline, minimum
    0.2 mm², rigid
    0.25 mm², flexible
  • Electrical data, Dupline interface fuse protection, General
    internally short-circuit proof
  • Voltage, Operating voltage, DuplineSafe
    8.2 VDC
  • Voltage, Rated impulse withstand voltage, Dupline
    0.8 kV
  • Voltage, rated insulation voltage, Dupline
    30 VDC
  • Voltage, rated operating voltage
    230 VAC
  • Voltage, rated operating voltage
    24 VDC
  • Voltage, rated operating voltage, DuplineSafe
    8.3 VDC
  • Voltage, type
    DC
    AC
  • Voltage, type, DuplineSafe
    DC

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
