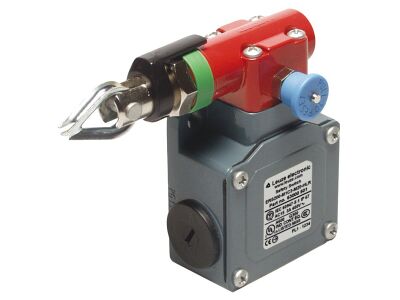

ERS200-M1C1-M20-HAL E-STOP rope switch

ERS200-M1C1-M20-HAL

Contact allocation: 2NC; Cable entry: 1 Piece(s), M20 x 1.5; Connection: Terminal, 4 -pin; Dimension: 84 mm x 49.5 mm x 98.5 mm; Housing material: Metal, ZAMAK; Installation position: On rope pull axis, to the left; Switch type: E-Stop command device, EN ISO 13850; External actuator: Rope; Rope length, max. (at 20 °C temperature difference): 70 m; Actuation force (pull-out): 235 N; Actuation directions: To left; Actuating path with forced separation: 14 mm; Degree of protection: IP 67; Certifications: IMQ, c UL US

  • SKU
    2110-63000525
  • Manufacturer code
    63000525
  • Number of actuation directions
    1
  • With tension indication
    false
  • Length, wire, maximum
    70 m
  • Colour
    Silver
  • Ambient temperature
    -25 - 80 °C
  • Degree of protection (IP)
    IP67
  • Most suitable applications
    Ideal for emergency stop functions where a rope pull is required.
  • Housing material
    ZAMAK
  • Type of switch function
    2NC
  • Cable entry
    1
  • Actuation force (pull-out) (N)
    235
  • External actuator
    Rope
  • Actuation directions
    To left
  • Rope length (m),ax. (at 20 °C temperature difference)
    70
  • Manufacturer Leuze

Product attachments

DS_ERS200-M1C1-M20-HAL_eng_63000525 (LINK)
