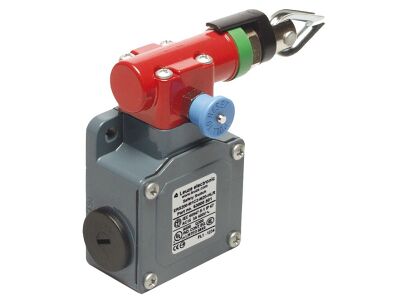

ERS200-M0C3-M20-HAR E-STOP rope switch

Contact allocation: 1NC + 1NO; Cable entry: 3 Piece(s), M20 x 1.5; Connection: Terminal, 4 -pin; Dimension: 92 mm x 47.8 mm x 89 mm; Housing material: Metal, ZAMAK; Installation position: On rope pull axis, to the right; Switch type: E-Stop command device, EN ISO 13850; External actuator: Rope; Rope length, max. (at 20 °C temperature difference): 70 m; Actuation force (pull-out): 235 N; Actuation directions: To right; Actuating path with forced separation: 14 mm; Degree of protection: IP 67; Certifications: IMQ, c UL US
