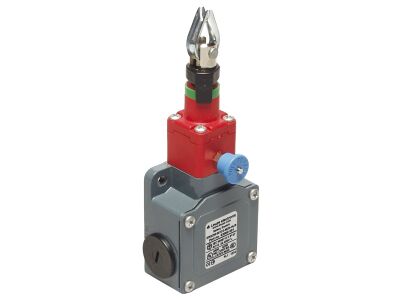

Contact allocation: 1NC + 1NO; Cable entry: 1 Piece(s), M20 x 1.5; Connection: Terminal, 4 -pin; Dimension: 40 mm x 49.5 mm x 138.5 mm; Housing material: Metal; Installation position: On rope pull axis; Switch type: E-Stop command device, EN ISO 13850; External actuator: Rope; Rope length, max. (at 20 °C temperature difference): 24 m; Actuation force (pull-out): 83 N; Actuation directions: On longitudinal axis; Actuating path with forced separation: 8 mm; Degree of protection: IP 67; Certifications: IMQ, c UL US

SKU

50149995
Manufacturer code

50149995
Number of actuation directions

1
With tension indication

false
Length, wire, maximum

24 m
Colour

Red
Ambient temperature

-25 - 80 °C
Degree of protection (IP)

IP67
Most suitable applications

Emergency stop operations on rope pull axis.
Housing material

Metal
Type of switch function

1NC + 1NO
Cable entry

1
Actuation force (pull-out) (N)

83
External actuator

Rope
Actuation directions

On longitudinal axis
Rope length (m),ax. (at 20 °C temperature difference)

24

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
