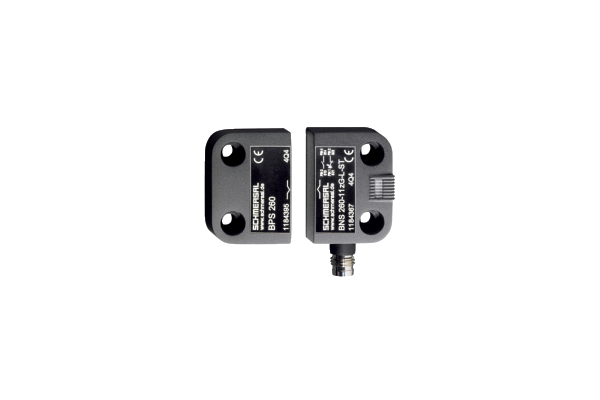

BNS 260-02ZG-ST-L-2750 Magnetic machine safety switch

BNS 260-02ZG-ST-L-2750
Thermoplastic enclosure
small body
Concealed mounting possible
26 mm x 36 mm x 13 mm
Long life
no mechanical wear
Insensitive to transverse misalignment
Insensitive to soiling
  • SKU
    4030661519586
  • Manufacturer code
    103027188
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661519586
  • SAP, product group
    Initial
  • SAP, gross weight
    15.000 g
  • SAP, net weight
    15.000 g
  • Coding, Coding level according to EN ISO 14119
    Low
  • Current, Switching current, maximum
    0.01 A
  • Type of execution, Actuating element
    Magnet
  • Type of Execution, Terminals, mechanical
    quasi-flush
  • Type of Execution, IP Protection class, General
    IP67
  • Height, Sensor
    36 mm
  • Length, Sensor
    13 mm
  • Area, ensured switch distance OFF Sar
    18 mm
  • Area, ensured switch distance ON Sao
    8 mm
  • Width, Sensor
    26 mm
  • Housing material
    Glass-fibre, reinforced thermoplastic
  • Motion, Direction of motion
    Head-on to the active surface
  • Standard, standards
    EN IEC 60947-5-3
    BG-GS-ET-14
  • Note, General
    Contact symbols shown for the closed condition of the guard
    The contact configuration for versions with or without LED i
  • Number, NC contacts
    2
  • Power, switching capacity, maximum
    0.24 W
  • Recommendation, actuator
    BPS 260
  • Recommended, Safety switchgear
    SRB-E-301ST
    SRB-E-201LC
  • Type of electric connection
    Connector M8, 4-pole, A-coded
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +70 °C
  • Temperature, storage and transport temperature, maximum
    70 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Time, Switching frequency, maximum
    5 Hz
  • Web Type
    Product range
  • Note, Integral System Diagnostics, Status
    The LED is illuminated when the guard is closed.
  • Selection (Yes/No), Integral System Diagnostics, status
    Yes
  • Number, Safety contacts
    2
  • Voltage, Rated impulse withstand voltage
    0.8 kV
  • Voltage, rated insulation voltage
    75 VDC
  • Note, Wiring diagram
    The contacts S11-S12 and S21-S22 must be integrated in the s
  • Current, Required rated short-circuit current to EN 60947-5-1
    100 A
  • Type of Execution, IP Protection class, General  [generated product range]
    IP67
  • Area, ensured switch distance OFF Sar[generated product range]
    15 mm,
    18 mm (order index -2750) mm
  • Area, ensured switch distance ON Sao[generated product range]
    5 mm,
    8 mm (order index -2750) mm
  • Standard, standards [generated product range]
    BG-GS-ET-14, EN IEC 60947-5-3
  • Notice, Switch distance Sn
    Axial misalignment, a horizontal and vertical misalignment o
  • Tightening torque, tightening torque, Electrical connection
    0.3 Nm
