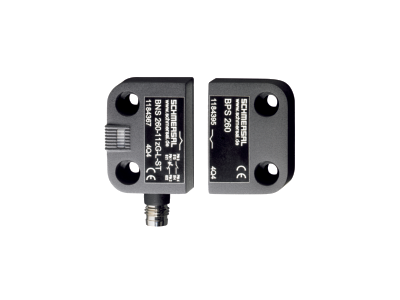

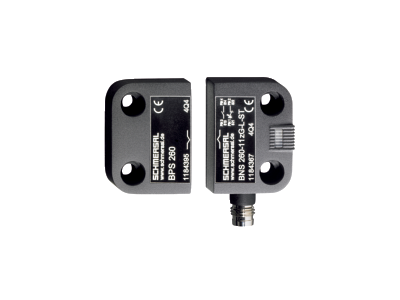

Thermoplastic enclosure
small body
Concealed mounting possible
26 mm x 36 mm x 13 mm
Long life
no mechanical wear
Insensitive to transverse misalignment
Insensitive to soiling

SKU

4030661355061
Manufacturer code

101193223
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661355061
SAP, product group

Initial
SAP, gross weight

111.000 g
SAP, net weight

111.000 g
Coding, Coding level according to EN ISO 14119

Low
Current, Switching current, maximum

0.01 A
Type of execution, Actuating element

Magnet
Type of Execution, Terminals, mechanical

quasi-flush
Type of Execution, IP Protection class, General

IP67
Diameter, Wire cross-section,

0.25 mm<sup>2</sup>
Height, Sensor

36 mm
Length, Sensor

13 mm
Area, ensured switch distance OFF S_ar

15 mm
Area, ensured switch distance ON S_ao

5 mm
Width, Sensor

26 mm
Material, cable mantle

PVC
Housing material

Glass-fibre, reinforced thermoplastic
Motion, Direction of motion

Head-on to the active surface
Standard, standards

EN IEC 60947-5-3
BG-GS-ET-14
Note, General

Contact symbols shown for the closed condition of the guard
The contact configuration for versions with or without LED i
Number, NC contacts

3
Power, switching capacity, maximum

0.24 W
Recommendation, actuator

BPS 260
Recommended, Safety switchgear

SRB-E-301ST
SRB-E-201LC
Type of electric connection

Cable
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 1 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Switching frequency, maximum

5 Hz
Web Type

Product range
Note, Integral System Diagnostics, Status

The LED is illuminated when the guard is closed.
Selection (Yes/No), Integral System Diagnostics, status

Yes
Number, Safety contacts

2
Number, cable wires, electrical

6
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

75 VDC
Note, Wiring diagram

The contacts S11-S12 and S21-S22 must be integrated in the s
Current, Required rated short-circuit current to EN 60947-5-1

100 A
Type of Execution, IP Protection class, General [generated product range]

IP67
Area, ensured switch distance OFF Sar[generated product range]

15 mm,
18 mm (order index -2750) mm
Area, ensured switch distance ON Sao[generated product range]

5 mm,
8 mm (order index -2750) mm
Standard, standards [generated product range]

BG-GS-ET-14, EN IEC 60947-5-3
Notice, Switch distance Sn

Axial misalignment, a horizontal and vertical misalignment o
Number, cable wires, indication with cable cross-section, electrical

6

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
