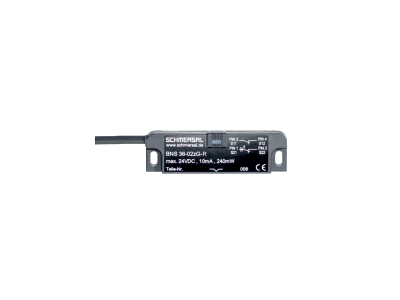

BNS 36-11Z-R Magnetic machine safety switch
Manufacturer: Schmersal Code: 101193120 SKU: 4030661359731
Thermoplastic enclosure
Concealed mounting possible
Insensitive to transverse misalignment
88 mm x 25 mm x 13 mm
Long life
no mechanical wear
Insensitive to soiling
Concealed mounting possible
Insensitive to transverse misalignment
88 mm x 25 mm x 13 mm
Long life
no mechanical wear
Insensitive to soiling
- SKU4030661024363
- Manufacturer code101118748
- PIM maintenance statusDischarge "Online catalog"
- SAP, basic quantity unitPiece
- SAP, EAN (European Article Number)4030661024363
- SAP, product groupInitial
- SAP, gross weight295.000 g
- SAP, net weight295.000 g
- Coding, Coding level according to EN ISO 14119Low
- Current, Switching current, maximum0.4 A
- Type of execution, Actuating elementMagnet
- Type of Execution, Terminals, mechanicalnot flush
- Type of Execution, IP Protection class, GeneralIP67
- Type of Execution, Switching output, Digital output, electricMiscellaneous, Reed contacts
- Diameter, Wire cross-section, AWG23 AWG
- Diameter, Wire cross-section,0.25 mm<sup>2</sup>
- Height, Sensor25 mm
- Cable length8 m
- Length, Sensor13 mm
- Area, ensured switch distance OFF Sar15 mm
18 mm - Area, ensured switch distance ON Sao5 mm
8 mm - Width, Sensor88 mm
- Material, cable mantlePVC
- Housing materialGlass-fibre, reinforced thermoplastic
- Motion, Direction of motionHead-on to the active surface
- Standard, standardsEN IEC 60947-5-3
BG-GS-ET-14 - Note, GeneralContact symbols shown for the closed condition of the guard
The contact configuration for versions with or without LED i - Number, NC contacts1
- Number, NO contacts1
- PNV, standard, certificatescULus
TÜV
BG - Power, switching capacity, maximum10 W
- Recommendation, actuatorBPS 33-2326
BPS 33 - Recommended, Safety switchgearSRB-E-301ST
SRB-E-201LC - Type of electric connectionCable
- Review, Resistance to vibrations to EN 60068-2-610 … 55 Hz, amplitude 1 mm
- Review, restistance to shock30 g / 11 ms
- Safety parameters, Mission time20 Year(s)
- Safety parameterEN ISO 13849-1
- Included in delivery, number and type, generalActuator must be ordered separately.
- Temperature, Ambient temperature[generated product variant]-25 ... +70 °C
- Temperature, ambient temperature, maximum70 °C
- Temperature, ambient temperature, minimum-25 °C
- Temperature, storage and transport temperature,[generated product variant]-25 ... +70 °C
- Temperature, storage and transport temperature, maximum70 °C
- Temperature, storage and transport temperature, minimum-25 °C
- Time, Switching frequency, maximum5 Hz
- Web TypeProduct range
- Selection (Yes/No), CADENASYes
- Review, selection (yes/no), Prerequisite evaluation unitYes
- CAD, traceparts, product ID33-22052019-077517
This product is unavailable
This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
- Manufacturer Schmersal
Product attachments
file-24938-d21366eed1912525936380154c657836.pdf (PDF, 362.24 kB)

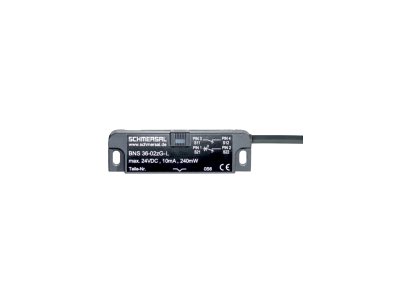

BNS 36-11Z-L Magnetic machine safety switch
