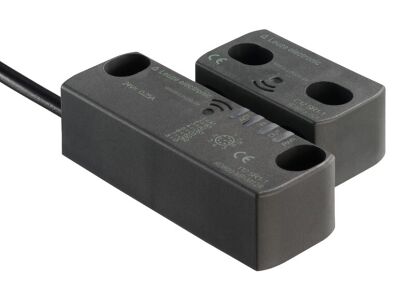

RD800-MUCA-CB2-R Safety transponder

RD800-MUCA-CB2-R
A safety transponder designed for reliable and secure use.
  • SKU
    2110-63002061
  • Manufacturer code
    63002061
  • Type of electric connection
    With cable preassembled
  • Width sensor
    25 mm
  • Height of sensor
    18 mm
  • Length of sensor
    72 mm
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Housing material
    Plastic
  • Coating housing
    Other
  • Suitable for safety functions
    true
  • With status indication
    false
  • Degree of protection (IP)
    IP67
  • Cam distance
    10 mm
  • Type of control element
    Other
  • Number of safety auxiliary contacts
    2
  • Type of switch function
    Other
  • Rated operation current Ie at AC-15, 24 V
    0.25 A
  • Rated operation current Ie at AC-15, 125 V
    0.25 A
  • Rated operation current Ie at AC-15, 230 V
    0.25 A
  • Rated operation current Ie at DC-13, 24 V
    0.25 A
  • Rated operation current Ie at DC-13, 125 V
    0.25 A
  • Rated operation current Ie at DC-13, 230 V
    0.25 A
  • Type of interface
    None
  • Type of interface for safety communication
    None
  • Ambient temperature during operating
    -25 - 70 °C
  • Most suitable applications
    Individual use Series use
  • Code type
    Unique code
  • Performance Level (PL)
    Up to and including e
  • Category
    Up to and including 4
  • ISO Standard
    EN ISO 13849
    EN ISO 13849-1
  • Manufacturer Leuze

Product attachments

DS_RD800-MUCA-CB2-R_eng_63002061 (LINK)
