Magnetically coded sensor with durable plastic housing and reinforced glass fiber features.

SKU

2110-63001032
Manufacturer code

63001032
Number of semiconductor outputs with signalling function

0
Number of contact energized outputs with signalling function

0
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of actuation

Magnet
Type of electric connection

Cable
Width sensor

25 mm
Height of sensor

13 mm
Length of sensor

88 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Housing material

Plastic
Plastic
Plastic
Plastic
Glass fiber reinforced
Coating housing

Uncoated
Protected switch distance OFF

22 mm
Protected switch distance ON

9 mm
Max. output current at protected output

100 mA
Ambient temperature

-20 - 70 °C
Mechanical mounting condition for sensor

Other
Min. output current

100 mA
Voltage type

AC/DC
Cross-/short circuit identification possible

false
Switching distance

19 mm
With monitoring function downstream switching devices

false
Suitable for safety functions

true
With status indication

false
Degree of protection (IP)

IP67
Type of switch function

2NO + 1NO (signaling)
External actuator

Magnetically coded
Cut-out point (OFF), min. (mm)

19
Most suitable applications

Safety systems requiring magnetically coded actuation and reliable cut-out/cut-in distances.

Cart

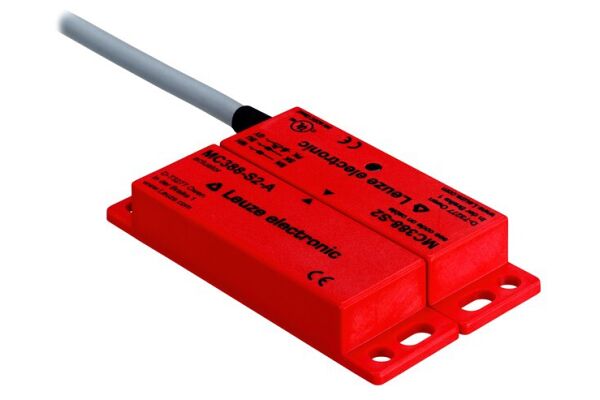

MC388-S2C10-AL Magnetically coded sensor
