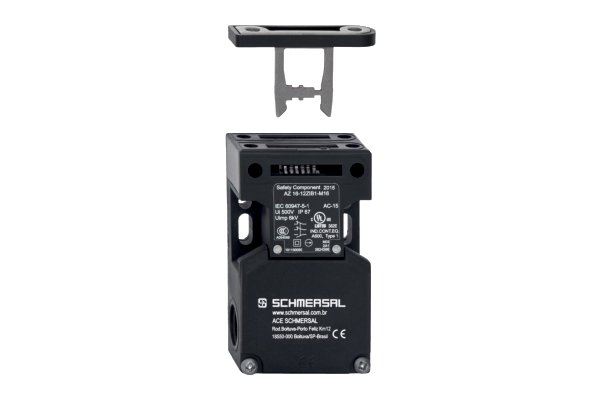

AZ 16-12ZI-B6L-M16 Machine safety switch with separate actuator

AZ 16-12ZI-B6L-M16
3 cable entries M 16 x 1.5
Thermoplastic enclosure
Individual coding
Coding level "High" according to ISO 14119

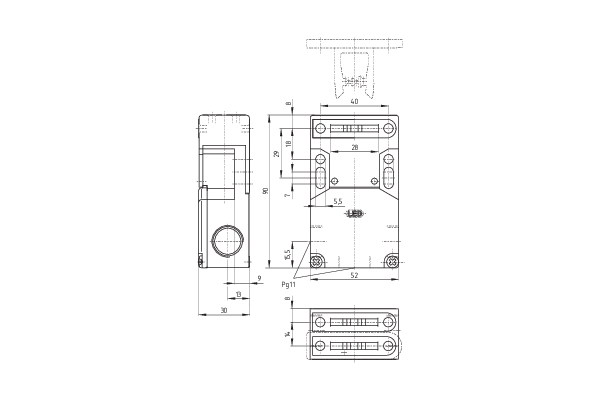

52 mm x 90 mm x 30 mm
Long life
Double-insulated
Large wiring compartment
High level of contact reliability with low voltages and currents
Insensitive to soiling
Slotted holes for adjustment, circular holes for location
  • SKU
    4030661440712
  • Manufacturer code
    103005854
  • Current, Thermal test current
    10 A
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations

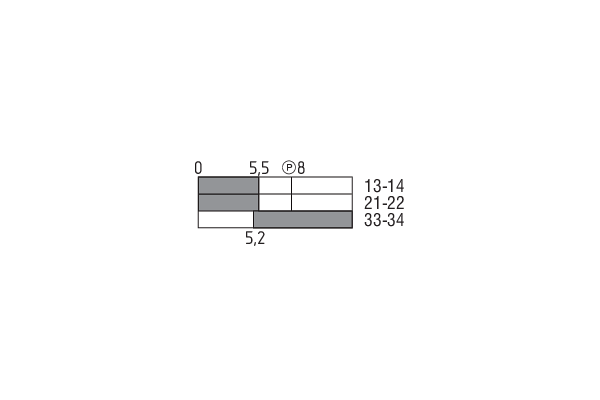

  • Switching principle
    slow action, positive break NC contact
  • Height, Sensor
    90 mm
  • Length, Sensor
    30 mm
  • Path, positive break travel
    8 mm
  • Width, Sensor
    52 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Electrical data, Cable section, minimum
    0.75 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Material, contacts, electrical
    Silver
  • Housing material
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Standard, standards
    EN IEC 60947-5-1
    EN ISO 14119
    EN ISO 13849-1
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Number, Auxiliary contacts
    1
  • Number, Safety contacts
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    TÜV
  • Type of switch function
    NO contact, NC contact
  • Electrical data, Terminal, Connector, Transmitter, General
    Screw terminals
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661440712
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    193.000 g
  • SAP, net weight
    193.000 g
  • Included in delivery, number and type, general
    Individually coded actuator B6 left-hand model
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Voltage, Rated impulse withstand voltage
    6 kV
  • Voltage, rated insulation voltage
    500 V
  • Web Type
    Product range
  • Coding, Coding level according to EN ISO 14119
    High
  • Current, Utilisation category AC-15, Safety contacts
    4 A
  • Current, Utilisation category DC-13, Safety contact
    4 A
  • Movement, actuating speed, maximum
    2 m/s
  • Current, Utilisation category AC-15, Safety contact VAC}
    230 VAC
  • Current, Utilisation category DC-13, Safety contact VDC}
    24 VDC
  • Selection (Yes/No), Ejection force
    Yes
  • Current, Required rated short-circuit current to EN 60947-5-1
    1000 A
  • Current, Utilisation category AC-15, Auxiliary contacts
    4 A
  • Current, Utilisation category DC-13, Auxiliary contacts
    4 A
  • Type of electric connection
    3 x M16 x 1,5
  • Type of Execution, Degree of pollution IEC/EN 60664-1
    3
  • Type of execution, mounting
    Screws
  • Type of execution, mounting, Screws
    2x M6
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    III
  • Height, permissible installation height above sea level, maximum
    2000 m
  • Force, Positive break force per NC contact, minimum Force,
    10 N
  • Note, General
    The actuator is not available separately.
    The axis of the hinge must be 5 mm above and in a parallel p
    Minimum actuating radius on hinged guards 35 mm
  • Note, Safety parameters, B10d, Normally-open contact  (NO)
    at 10% Ie and ohmic load
  • Note, Safety parameters, Fault exclusion
    Can be used when fault exclusion for dangerous damage to the
  • Safety parameters, B10d, Normally-closed contact  (NC),
    2000000 Operations
  • Safety parameters, B10d, Normally-open contact (NO)
    1000000 Operations
  • Safety parameters, Category, EN ISO 13849
    1
  • Safety parameters, Category, EN ISO 13849, Fault exclusion
    3
  • Safety parameters, Mission time, Fault exclusion
    20 Year(s)
  • Safety parameters, Performance Level,
    c
  • Safety parameters, Performance Level, Fault exclusion
    d
  • Temperature, storage and transport temperature,[generated product variant]
    -40 ... +85 °C
  • Temperature, storage and transport temperature, maximum
    85 °C
  • Temperature, storage and transport temperature, minimum
    -40 °C
  • Time, Switching frequency
    4000 /h
  • Voltage, Utilisation category AC-15, Auxiliary contacts
    230 VAC
  • Voltage, Utilisation category DC-13, Auxiliary contacts
    24 VDC
  • Selection (Yes/No), Traceparts
    Yes
  • Material, actuator
    Stainless steel
  • Type of Execution, Actuator
    flexible
    angled
  • Radius, Actuating radius, minimum
    35 mm
  • Selection (Yes/No), CADENAS
    Yes
