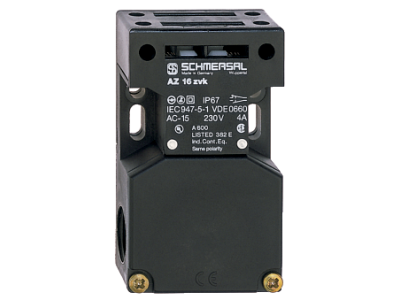

Thermoplastic enclosure
Double-insulated
Long life
52 mm x 75 mm x 30 mm
Universal coding
Large wiring compartment
High level of contact reliability with low voltages and currents
Slotted holes for adjustment, circular holes for location
Insensitive to soiling

SKU

4030661204444
Manufacturer code

101164063
Current, Thermal test current

10 A
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000 Operations
Switching principle

slow action, positive break NC contact
Height, Sensor

75 mm
Length, Sensor

30 mm
Path, positive break travel

8 mm
Width, Sensor

52 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.25 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Force, Positive break force, minimum Force,

10 N
Material, contacts, electrical

Silver
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN IEC 60947-5-1
EN ISO 14119
EN ISO 13849-1
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Number, Safety contacts

1
PIM maintenance status

Discharge "Online catalog"
Type of switch function

Opener (NC)
Electrical data, Terminal, Connector, Transmitter, General

Screw terminals
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661204444
SAP, product group

Initial
SAP, gross weight

95.000 g
SAP, net weight

95.000 g
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Voltage, Rated impulse withstand voltage

6 kV
Voltage, rated insulation voltage

500 V
Web Type

Product range
Coding, Coding level according to EN ISO 14119

Low
Current, Utilisation category AC-15, Safety contacts

4 A
Current, Utilisation category DC-13, Safety contact

4 A
Movement, actuating speed, maximum

2 m/s
Current, Utilisation category AC-15, Safety contact VAC}

230 VAC
Current, Utilisation category DC-13, Safety contact VDC}

24 VDC
Selection (Yes/No),

Yes
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Type of electric connection

3 x M20 x 1,5
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of execution, mounting

Screws
Type of execution, mounting, Screws

2x M6
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Height, permissible installation height above sea level, maximum

2000 m
Electrical data, Connector, allowed type of cable

flexible
solid single-wire
solid multi-wire
Force, Latching force

30 N
Force, Positive break force per NC contact, minimum Force,

10 N
Number, cable glands

3
Temperature, storage and transport temperature,[generated product variant]

-40 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-40 °C
Time, Switching frequency

4000 /h
Type of Execution, IP Protection class, General [generated product range]

IP67
Standard, standards [generated product range]

EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
Included in delivery, number and type, mounting material

4x Nuts

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
