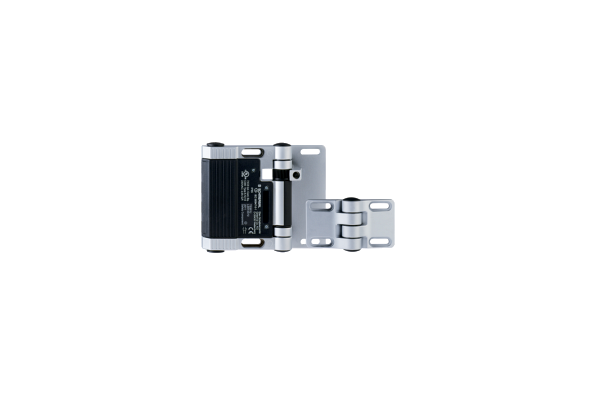

TESFA/0 Machine safety switch for hinged guards

TESFA/0
2 cable entries M 16 x 1.5
with fixed switching angle
Metal enclosure
Good resistance to oil and petroleum spirit
For left or right hinged doors
141 mm x 115 mm x 21,5 mm
Simple mounting, suitable for all conventional profile systems (30 … 60 mm)
  • SKU
    4030661604756
  • Manufacturer code
    101182067
  • Current, Thermal test current
    2.5 A
  • Current, Utilisation category AC-15
    2 A
  • Current, Utilisation category DC-13
    1 A
  • Type of Execution, IP Protection class, General
    IP65
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    Slow action
  • Angle, Positive break angle
    10 °
  • Height, Sensor
    115 mm
  • Length, Sensor
    21.5 mm
  • Width, Sensor
    141 mm
  • Electrical data, Cable section, maximum
    1 mm²
  • Electrical data, Cable section, minimum
    0.5 mm²
  • Electrical data, Max. fuse rating
    2 A gG D-fuse
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver-nickel alloy 10
  • Housing material
    Metal, zinc die-cast
  • Standard, standards
    EN IEC 60947-5-1
    BG-GS-ET-15
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, General
    Closed guard device = 0° in contact switch travel diagrams.
    The factory-set switching angle is 3°.
    Until the limit of the mechanical life has been reached the
    The positive break angle is 10°.
  • Number, Safety contacts
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
    IFA
  • Type of switch function
    NO contact, NC contact
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661604756
  • SAP, product group
    Initial
  • SAP, gross weight
    840.000 g
  • SAP, net weight
    840.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +65 °C
  • Temperature, ambient temperature, maximum
    65 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Switching frequency
    1200 /h
  • Voltage, Rated impulse withstand voltage
    2.5 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Selection (Yes/No), Traceparts
    Yes
  • Number, Auxiliary contacts
    2
  • Colour, housing
    Black
  • Angle, Opening angle
    180°
  • Selection (Yes/No), Alignment aid
    Yes
  • Selection (Yes/No), Mounting outside
    Yes
  • Included in delivery, number and type, general
    Additional hinge
  • Selection (Yes/No), Additional hinge
    Yes
