AZM 170-02ZRK-ST-2405 24VAC/DC Machine safety solenoid interlock

AZM 170-02ZRK-ST-2405 24VAC/DC
Thermoplastic enclosure
Double-insulated
Compact design
Interlock with protection against incorrect locking.
Long life
High holding force
  • SKU
    4030661154282
  • Manufacturer code
    101150018
  • Coding, Coding level according to EN ISO 14119
    Low
  • PIM maintenance status
    Technische Produktdaten vollständig für Ausleitung
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661154282
  • SAP, product group
    Initial
  • SAP, gross weight
    290.000 g
  • SAP, net weight
    290.000 g
  • Web Type
    Product range
  • Current, Thermal test current
    4 A
  • Current, Utilisation category AC-15, Safety contacts
    4 A
  • Current, Utilisation category DC-13, Safety contact
    2.5 A
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    slow action, positive break NC contact
  • Height, permissible installation height above sea level, maximum
    2000 m
  • Height, Sensor
    92.5 mm
  • Length, Sensor
    30 mm
  • Width, Sensor
    110 mm
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Force, clamping force in accordance with EN ISO 14119
    1000 N
  • Clamping force, maximum
    1300 N
  • Force, Latching force
    30 N
  • Force, Positive break force, minimum Force,
    17 N
  • Material, contacts, electrical
    Silver
  • Housing material
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Movement, actuating speed, maximum
    2 m/s
  • Standard, standards
    EN IEC 60947-5-1
    EN ISO 13849-1
    EN ISO 14119
  • Note, Relative humidity
    non-condensing
    non-icing
  • Number, Actuating directions
    2
  • Number, Safety contacts
    2
  • Power, electrical consumption, maximum
    12 W
  • Type of switch function
    Opener (NC)
  • Electrical data, Terminal, Connector, Transmitter, General
    Connector plug M12, 4-pole, (A-coding)
    Connector plug M12, 4-pole, (B-coding)
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Switching frequency
    1000 /h
  • Time, duty cycle solenoid
    100 %
  • Time, test pulse duration, maximum
    5 ms
  • Time, test pulse interval, solenoid control, minimum
    50 ms
  • Voltage, Rated control voltage
    24 VAC/DC
  • Voltage, Rated impulse withstand voltage
    2.5 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Current, Utilisation category DC-13, Safety contact VDC}
    24 VDC
  • Selection (Yes/No), Power to unlock
    Yes

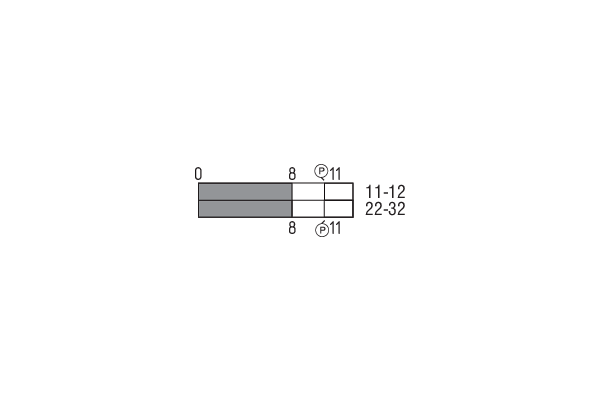

  • Path, positive break travel
    11 mm
  • Note, applications
    sliding safety guard
    hinged safety guard
    removable guard
  • Current, Required rated short-circuit current to EN 60947-5-1
    1000 A
  • Type of Execution, Degree of pollution IEC/EN 60664-1
    3
  • Type of execution, mounting
    Screws
  • Type of execution, mounting, Screws
    2x M5
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    II
  • Type of Execution, Protection class (Operating resource)
    2
  • Force, Positive break force per NC contact, minimum Force,
    8.5 N
  • Note, Design, Switching element
    Change-over contact with double break, type Zb or 2 NC conta
  • Note, Safety parameters, B10d, Normally-open contact  (NO)
    at 10% Ie and ohmic load
  • Note, Safety parameters, Fault exclusion
    Can be used when fault exclusion for dangerous damage to the
  • Note, tightening torque, screw, housing cover
    Torx T10
  • Safety parameters, B10d, Normally-closed contact  (NC),
    2000000 Operations
  • Safety parameters, B10d, Normally-open contact (NO)
    1000000 Operations
  • Safety parameters, Category, EN ISO 13849
    1
  • Safety parameters, Category, EN ISO 13849, Fault exclusion
    3
  • Safety parameters, Mission time, Fault exclusion
    20 Year(s)
  • Safety parameters, Performance Level,
    c
  • Safety parameters, Performance Level, Fault exclusion
    d
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +85 °C
  • Temperature, storage and transport temperature, maximum
    85 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Torque, tightening torque, screw, housing cover, maximum
    1 Nm
  • Torque, tightening torque, screw, housing cover, minimum
    0.7 Nm
  • Note, Utilisation category DC-13, Auxiliary contacts
    Connector 4-pin
  • Note, Utilisation category DC-13, Safety contacts
    Connector 4-pole
  • Note, Choice (Yes/No), Emergency exit
    For cases of danger
    Actuation from within the hazardous area
  • Selection (Yes/No), Emergency exit
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
