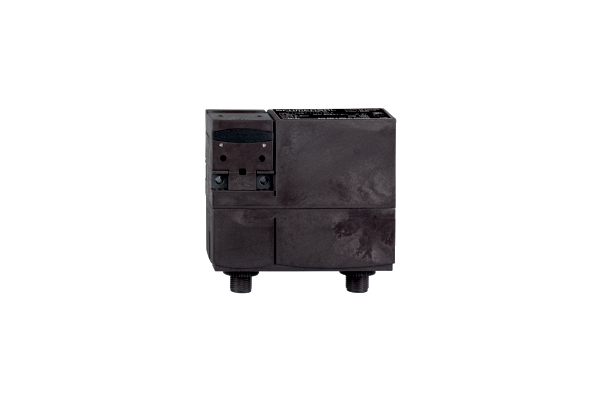

connector, can be rotated
Thermoplastic enclosure
Double-insulated
Compact design
Interlock with protection against incorrect locking.
Long life
High holding force

SKU

4030661326085
Manufacturer code

101186185
Coding, Coding level according to EN ISO 14119

Low
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661326085
SAP, product group

Initial
SAP, gross weight

300.000 g
SAP, net weight

300.000 g
Web Type

Product range
Current, Thermal test current

2 A
Current, Utilisation category AC-15, Auxiliary contacts

4 A
Current, Utilisation category AC-15, Safety contacts

4 A
Current, Utilisation category DC-13, Auxiliary contacts

2 A
Current, Utilisation category DC-13, Safety contact

2 A
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000 Operations
Switching principle

slow action, positive break NC contact
Height, permissible installation height above sea level, maximum

2000 m
Height, Sensor

92.5 mm
Length, Sensor

30 mm
Width, Sensor

90 mm
Electrical data, Max. fuse rating

2 A gG D-fuse
Force, clamping force in accordance with EN ISO 14119

1000 N
Clamping force, maximum

1300 N
Force, Latching force

30 N
Force, Positive break force, minimum Force,

8.5 N
Material, contacts, electrical

Silver
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Movement, actuating speed, maximum

2 m/s
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN ISO 14119
Note, Relative humidity

non-condensing
non-icing
Number, Actuating directions

2
Number, NO contacts

2
Number, NC contacts

2
PNV, standard, certificates

CCC
cULus
BG
Power, electrical consumption, maximum

12 W
Type of switch function

NO contact, NC contact
Electrical data, Terminal, Connector, Transmitter, General

Connector plug M12, 4-pole, (A-coding)
Connector plug M12, 8-pole, (A-coding)
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-25 °C
Time, Switching frequency

1000 /h
Time, duty cycle solenoid

100 %
Time, test pulse duration, maximum

5 ms
Time, test pulse interval, solenoid control, minimum

50 ms
Voltage, Rated control voltage

24 VAC/DC
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

60 V
Voltage, Utilisation category DC-13, Auxiliary contacts

24 VDC
Current, Utilisation category DC-13, Safety contact VDC}

24 VDC
Selection (Yes/No), Power to lock

Yes
Path, positive break travel

11 mm
Note, applications

sliding safety guard
hinged safety guard
removable guard
Selection (Yes/No), Traceparts

Yes
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of execution, mounting

Screws
Type of execution, mounting, Screws

2x M5
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Type of Execution, Protection class (Operating resource)

2
Force, Positive break force per NC contact, minimum Force,

8.5 N
Note, Design, Switching element

Change-over contact with double break, type Zb or 2 NC conta
Note, Safety parameters, B10d, Normally-open contact (NO)

at 10% I_e and ohmic load
Note, Safety parameters, Fault exclusion

Can be used when fault exclusion for dangerous damage to the
Note, tightening torque, screw, housing cover

Torx T10
Safety parameters, B10d, Normally-closed contact (NC),

2000000 Operations
Safety parameters, B10d, Normally-open contact (NO)

1000000 Operations
Safety parameters, Category, EN ISO 13849

1
Safety parameters, Category, EN ISO 13849, Fault exclusion

3
Safety parameters, Mission time, Fault exclusion

20 Year(s)
Safety parameters, Performance Level,

c
Safety parameters, Performance Level, Fault exclusion

d
Temperature, storage and transport temperature,[generated product variant]

-25 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-25 °C
Torque, tightening torque, screw, housing cover, maximum

1 Nm
Torque, tightening torque, screw, housing cover, minimum

0.7 Nm
Selection (Yes/No), CADENAS

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
