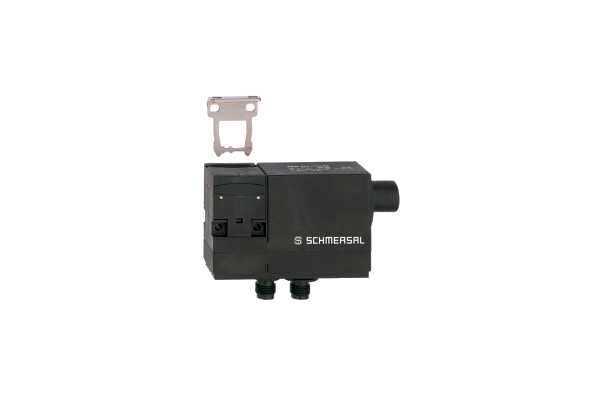

AZM 170-02ZRIA-ST-B5 24VAC/DC Machine safety solenoid interlock

AZM 170-02ZRIA-ST-B5 24VAC/DC
Connector M12, 4-pole
A- and B-coding of the connectors
Double-insulated
Individual coding
Coding level "High" according to ISO 14119
90 mm x 84 mm x 30 mm
Compact design
Interlock with protection against incorrect locking.
Long life
High holding force
Particularly suitable for front mounting
  • SKU
    4030661132846
  • Manufacturer code
    101144342
  • Coding, Coding level according to EN ISO 14119
    High
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661132846
  • SAP, product group
    Initial
  • SAP, gross weight
    296.000 g
  • SAP, net weight
    296.000 g
  • Web Type
    Product range
  • Current, Thermal test current
    4 A
  • Current, Utilisation category AC-15, Safety contacts
    4 A
  • Current, Utilisation category DC-13, Safety contact
    4 A
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    slow action, positive break NC contact
  • Height, Sensor
    75.5 mm
  • Length, Sensor
    30 mm
  • Width, Sensor
    108 mm
  • Electrical data, Max. fuse rating
    4 A gG D-fuse
  • Force, clamping force in accordance with EN ISO 14119
    1000 N
  • Clamping force, maximum
    1300 N
  • Force, Latching force
    30 N
  • Force, Positive break force, minimum Force,
    17 N
  • Material, contacts, electrical
    Silver
  • Housing material
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Movement, actuating speed, maximum
    2 m/s
  • Standard, standards
    EN IEC 60947-5-1
    EN ISO 13849-1
    EN ISO 14119
    BG-GS-ET-19
  • Note, Relative humidity
    non-condensing
    non-icing
  • Number, Actuating directions
    2
  • Number, Safety contacts
    2
  • PNV, standard, certificates
    CCC
    cULus
    BG
  • Power, electrical consumption, maximum
    10 W
  • Type of switch function
    Opener (NC)
  • Electrical data, Terminal, Connector, Transmitter, General
    Connector plug M12, 4-pole, (A-coding)
    Connector plug M12, 4-pole, (B-coding)
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Included in delivery, number and type, general
    The actuator is included in the scope of delivery
    Slot sealing plugs
    Not available as spare part
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Switching frequency
    1000 /h
  • Time, duty cycle solenoid
    100 %
  • Time, test pulse duration, maximum
    5 ms
  • Time, test pulse interval, solenoid control, minimum
    50 ms
  • Voltage, Rated control voltage
    24 VAC/DC
  • Voltage, Rated impulse withstand voltage
    2.5 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Current, Utilisation category AC-15, Safety contact VAC}
    230 VAC
  • Current, Utilisation category DC-13, Safety contact VDC}
    24 VDC
  • Selection (Yes/No), Power to lock
    Yes
  • Path, positive break travel
    11 mm
  • Note, applications
    sliding safety guard
    hinged safety guard
    removable guard
  • Selection (Yes/No), Traceparts
    Yes
  • Current, Required rated short-circuit current to EN 60947-5-1
    1000 A
  • Type of Execution, Degree of pollution IEC/EN 60664-1
    3
  • Type of execution, mounting
    Screws
  • Type of execution, mounting, Screws
    2x M5
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    II
  • Type of Execution, Protection class (Operating resource)
    2
  • Note, Design, Switching element
    Change-over contact with double break, type Zb or 2 NC or 3
  • Note, General
    The actuator is not available separately.
    minimum actuating radius on rotating guard systems via the n
    minimum actuating radius on hinged guards in line with the p
    The axis of the hinge must be 13 mm above and in a parallel
  • Safety parameters, Category, EN ISO 13849
    3
  • Safety parameters, Mission time, Fault exclusion
    20 Year(s)
  • Safety parameters, Performance Level,
    d
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +85 °C
  • Temperature, storage and transport temperature, maximum
    85 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Selection (Yes/No), CADENAS
    Yes
  • Coding, general information
    Individual coding
  • Radius, Actuating radius, minimum
    140 mm
  • Material, actuator
    Stainless steel

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
