1 Cable entry M 20 x 1.5
IDC method of termination
Manual release
Double-insulated
Individual coding
Coding level "High" according to ISO 14119
90 mm x 84 mm x 30 mm
Compact design
Interlock with protection against incorrect locking.
Long life
High holding force
Particularly suitable for sliding doors

SKU

4030661119861
Manufacturer code

101140798
Coding, Coding level according to EN ISO 14119

High
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661119861
SAP, product group

Initial
SAP, gross weight

292.000 g
SAP, net weight

292.000 g
Web Type

Product range
Current, Thermal test current

6 A
Current, Utilisation category AC-15, Safety contacts

4 A
Current, Utilisation category DC-13, Safety contact

4 A
Type of Execution, Cable entry

M 16 x 1.5
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000 Operations
Switching principle

slow action, positive break NC contact
Height, Sensor

84 mm
Length, Sensor

30 mm
Width, Sensor

90 mm
Electrical data, Cable section, maximum

1 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Force, clamping force in accordance with EN ISO 14119

1000 N
Clamping force, maximum

1300 N
Force, Latching force

30 N
Force, Positive break force, minimum Force,

17 N
Material, contacts, electrical

Silver
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Movement, actuating speed, maximum

2 m/s
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN ISO 14119
BG-GS-ET-19
Note, Relative humidity

non-condensing
non-icing
Number, Actuating directions

2
Number, Safety contacts

2
PNV, standard, certificates

CCC
cULus
BG
Power, electrical consumption, maximum

10 W
Type of switch function

Opener (NC)
Electrical data, Terminal, Connector, Transmitter, General

IDC method of termination
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

The actuator is included in the scope of delivery
Slot sealing plugs
Not available as spare part
Temperature, Ambient temperature[generated product variant]

-25 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-25 °C
Time, Switching frequency

1000 /h
Time, duty cycle solenoid

100 %
Time, test pulse duration, maximum

5 ms
Time, test pulse interval, solenoid control, minimum

50 ms
Voltage, Rated control voltage

24 VAC/DC
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated insulation voltage

250 VAC
Current, Utilisation category AC-15, Safety contact VAC}

230 VAC
Current, Utilisation category DC-13, Safety contact VDC}

24 VDC
Selection (Yes/No), Power to unlock

Yes

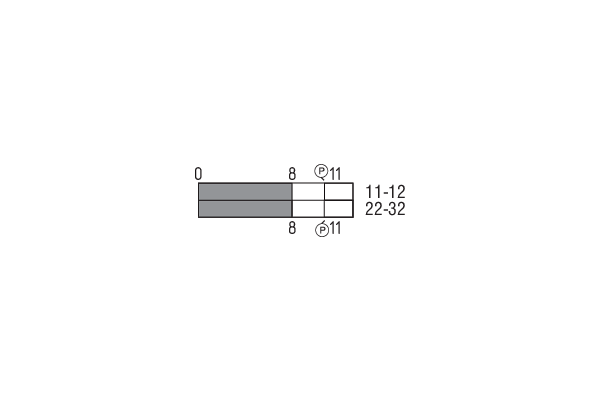

Path, positive break travel

11 mm
Note, applications

sliding safety guard
hinged safety guard
removable guard
Selection (Yes/No), Traceparts

Yes
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of execution, mounting

Screws
Type of execution, mounting, Screws

2x M5
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Type of Execution, Protection class (Operating resource)

2
Electrical data, Connector, allowed type of cable

flexible
Force, Positive break force per NC contact, minimum Force,

8.5 N
Note, Design, Switching element

Change-over contact with double break, type Zb or 2 NC or 3
Note, General

This type termination (IDC) method enables simple connetion
The actuator is not available separately.
Note, Choice (Yes/No), Manual release

For manual release using M5 triangular key, available as acc
bottom
Safety parameters, Category, EN ISO 13849

3
Safety parameters, Mission time, Fault exclusion

20 Year(s)
Safety parameters, Performance Level,

d
Temperature, storage and transport temperature,[generated product variant]

+25 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

25 °C
Selection (Yes/No), Manual release

Yes
Selection (Yes/No), CADENAS

Yes
Coding, general information

Individual coding
Radius, Actuating radius, minimum

140 mm

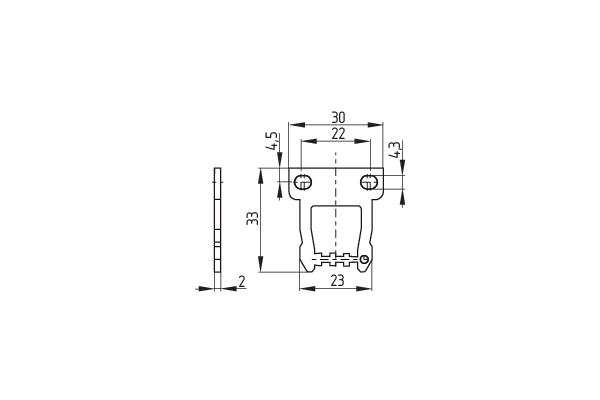

Material, actuator

Stainless steel

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

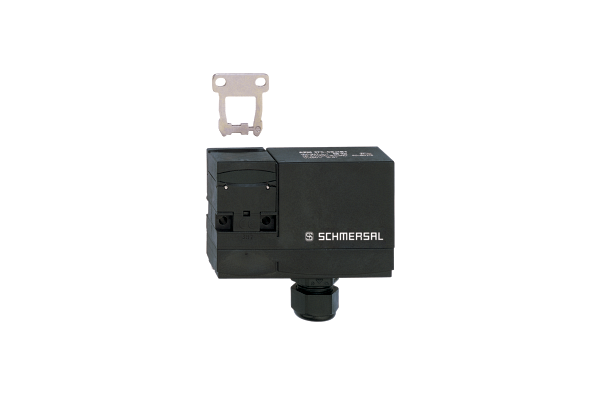

Manufacturer Schmersal
