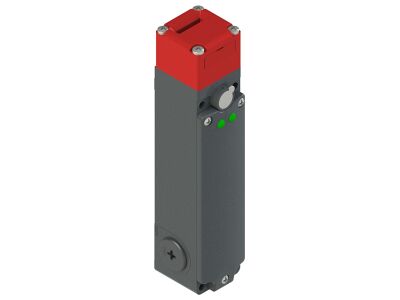

L200-M1C3-MLM24-L2G Safety locking device

L200-M1C3-MLM24-L2G
The L200 series is a safety locking device featuring electro-magnetic guard interlocking with illuminated displays and integration in control circuits up to category 4 per EN ISO 13849-1. It operates on an open circuit current principle with a maximum locking force of 2,500 N.
  • SKU
    2110-63000651
  • Manufacturer code
    63000651
  • With status indication
    false
  • Suitable for safety functions
    true
  • Guard locking force
    2800 N
  • With escape release
    false
  • Type of guard locking
    Quiescent current principle
  • With auxiliary release
    false
  • Switching principle
    Slow-action switch
  • Construction type housing
    Cuboid
  • Housing material
    Metal
    Metal
    Metal
    Metal
  • Coating housing
    Powder coating
  • Type of interface
    None
  • Type of interface for safety communication
    None
  • Type of electric connection
    Other
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Ambient temperature during operating
    -25 - 60 °C
  • Degree of protection (IP)
    IP67
  • Width sensor
    45 mm
  • Height of sensor
    46 mm
  • Length of sensor
    194.7 mm
  • Rated operation current Ie at AC-15, 24 V
    10 A
  • Rated operation current Ie at AC-15, 125 V
    10 A
  • Rated operation current Ie at AC-15, 230 V
    10 A
  • Rated operation current Ie at DC-13, 24 V
    10 A
  • Rated operation current Ie at DC-13, 125 V
    10 A
  • Rated operation current Ie at DC-13, 230 V
    10 A
  • Most suitable applications
    Guard interlocking systems
  • Series
    L200
  • Clamping force, maximum
    2500
  • Operating principle
    Open circuit current principle – Actuator locked if electromagnet is activated
  • Manufacturer Leuze

Product attachments

DS_L200-M1C3-MLM24-L2G_eng_63000651 (LINK)
